Thermal solutions

To insure safety and protection for every employee, visitor or client is every company’s responsibility. This is why there are four brand new innovative systems from DVC for contact free fever detection.

DVC DTC-BF0112

Superior Intelligence

DVC DTC-BF0112 Ideal for highest pass frequency places

DTC-BF0013

Advanced

DVC DTC-BF0013

Ideal for middle to higher pass frequence places

DTC-24F

Smart & Flexible

DVC DTC-24F

Ideal for middle pass frequency places

DVC IN-K3 PRO, DVC K9 AUTOMATIC

Fast & Simple

DVC IN-K3 PRO | DVC K9 AUTOMATIC Ideal for low pass frequency places

DVC DTC-BF0112

DTC-BF0112

Superior Intelligence Solution

iDEAL FOR HIGHEST PASS FREQUENCY PLACES

HOW TO USE IT

  • Aerports
  • Train and bus stations
  • Ferry statoins
  • Other big transport spots
  • Big shopping malls

ADVANTAGES

  • Speed – no contact processing up to 30 persons at the same time
  • Maximum precision- possible deviation  do +/- 0,3 °C
  • Temperature reading distance 2-6 m
  • Advanced technology and high resolution
  • Smart video analytics(AI VCA)
  • Acces control

SPECIFICATIONS

Thermal camera:

  • 384 x 288 uncooled detector
  • 17um,NETD: <35mK(@25°C, F#=1.0)
  • Lens 12.3mm
  • Accuracy without BlackBox:±0.5°C (30°C~42°C);
  • ±0.3°C (30°C~42°C,Accuracy withBlackBox)
  • Multi-palette: white, black, pseudo color
  • High temperature alarm, low temperature alarm, temperature exception alarm

Camera:

  • 5MP (2592×1944) 30 fps
  • 1/2.7″ BSI + NIR progressive CMOS image
  • Min. illumination: Color :0.0125 lux @F2.0; AGC ON
  • W/B:0.008 lux @F2.0; AGC ON
  • 8mm lens
  • 3D DNR, true WDR(120dB), HLC, BLC
  • Built-in white light and speaker
  • No contact processing up to 30 persons at the same time

HOW TO USE IT

1. Camera + Blackbox+ switch+ Internet Explorer

2. Camera + Blackbox + switch + NUMS.TTS

3. Camera + Blackbox + switch + NVR-DRN-0881TF

4. Several thermal cameras + recorder + tablets+ PC NVMS TSS

Blackbox:

Black Box device for camera calibration due to environment and environmental conditions, for even more precise measurement, recording and control of data.

DVC DTC-2

Recorder:

Real-time display of all warnings – high temperatures, not wearing a mask, entry restrictions. Real-time display with images of face, body and body temperature. Real time alarm for fever and mask usage detection. Standard H.265 compression for high video quality, up to 10TB for each HDD.

DVC DRN-0881TF

Softver PC NVMS TTS:

Temperature measurement

  • Real-time temperature display and full screen display
  • Latest seven-day statistics and statistical overview
  • Real-time statistics: numbers of suspicious temperatures / Total number of passes (today) / Total number of elevated temperatures / Total
  • passage count / analysis of the number of persons with masks
  • Pop-up window of people with fever, information can be edited (including going to the affected area, name, phone
  • number, ID number, address, etc.)
  • The record can be searched by time range, temperature range, whether it has a temperature
  • area, processing status, and keywords, and can also be exported to Excel
  • Historical statistics: maximum 40 days of data statistics; curve chart, bar graph and Excel data can also be exported
  • Adjustable temperature measurement range
NVMS TTS

Face recognition

  • Supports group adding and import of faces
  • The storage of unknown people, persons from the permit list and block list are displayed in different colors.
  • Supports Pop-up alarm window after face capture or match
  • Supports search and playback of images using a face image (captured face image or transmitted face image) and all searched faces
  • Images can be viewed via a list or record on the E-map
  • Supports adding a captured image to the face database in the one-touch image search interface
  • Supports face search similarity setting
NVMS TTS

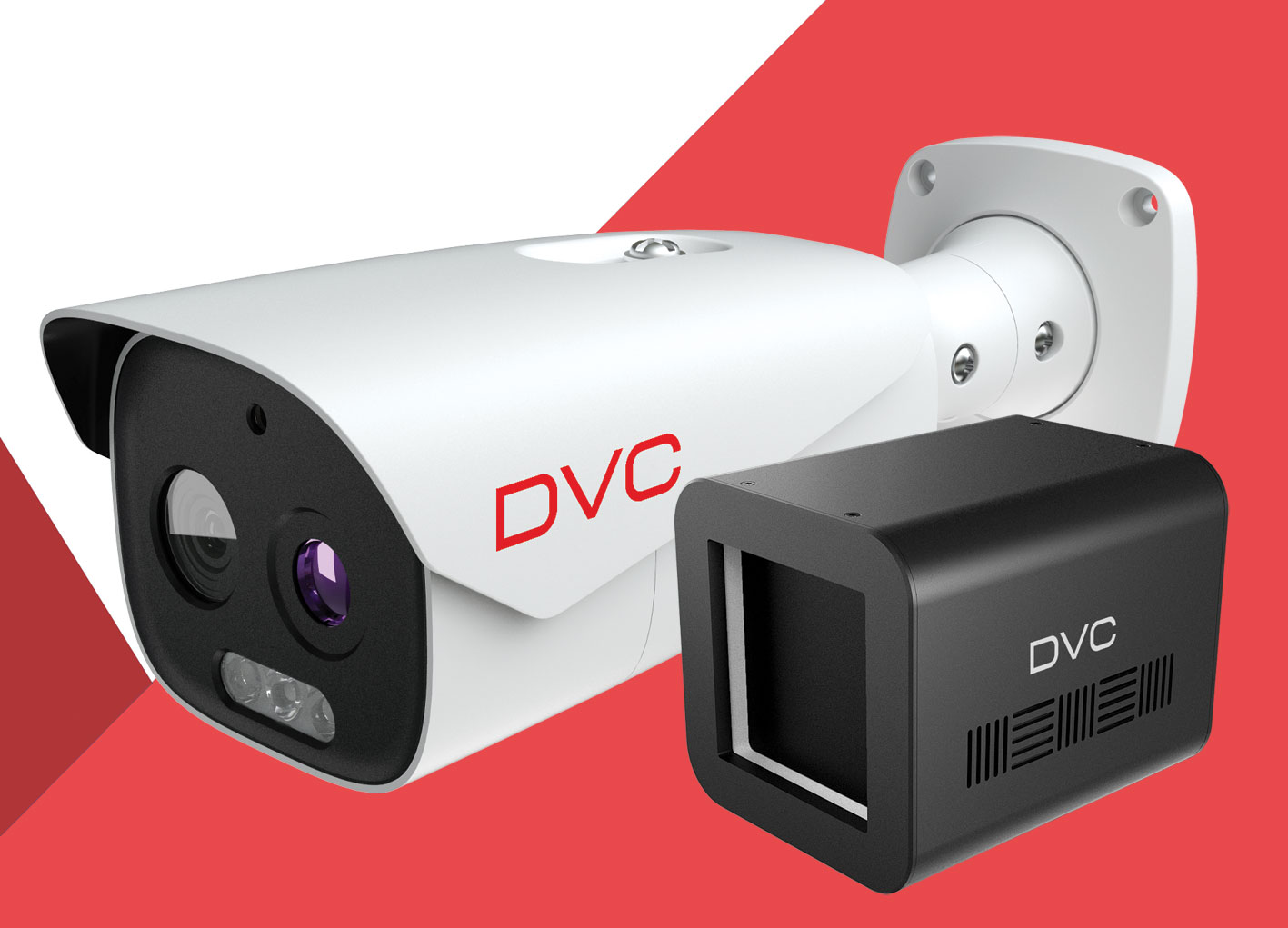

DTC-BF0013

DTC-BF0013

Advanced Solution

iDEAL FOR MIDDLE TO HIGHER PASS FREQUENCE PLACES

HOW TO USE IT

  • Hospitals
  • Schools
  • Sports Halls
  • Movie theaters
  • Stadiums
  • Congress centers
  • Universities, University campuses

ADVANTAGES

  • Speed – no contact processing up to 20 persons at the same time
  • Maximum precision – possible deviation do +/- 0,3°C
  • Temperature reading distance 2-6 m
  • Advanced technology and high resolution
  • Smart video analytics (AI VCA)
  • Acces control

SPECIFICATIONS

Thermal camera:

  • 256 x 192 uncooled detector
  • 17um,NETD: <35mK(@25°C, F#=1.0)
  • Lens 12.3mm
  • Accuracy without BlackBox:±0.5°C (30°C~42°C);
  • ±0.3°C 30°C~45°C, Accuracy with BlackBox)
  • Multi-palette: white, black, pseudo color
  • High temperature alarm, low temperature alarm, temperature exception alarm

Camera:

  • 5MP (2592×1944) 30 fps
  • 1/2.7″ BSI + NIR progressive CMOS image
  • Min. illumination: Kolor :0.0125 lux @F2.0; AGC ON
  • W/B:0.008 lux @F2.0; AGC ON
  • Lens 8 mm
  • 3D DNR, true WDR(120dB), HLC, BLC
  • Built-in white light and speaker
  • No contact processing up to 20 persons at the same time

HOW TO USE IT

1. Camera + Blackbox+ switch+ Internet Explorer

2. Camera + Blackbox + switch + NUMS.TTS

3. Camera + Blackbox + switch + NVR-DRN-0881TF

4. Several thermal cameras + recorder + tablets+ PC NVMS TSS

Blackbox:

Black Box device for camera calibration due to environment and environmental conditions, for even more precise measurement, recording and control of data.

DVC DTC-2

Recorder:

Real-time display of all warnings – high temperatures, not wearing a mask, entry restrictions. Real-time display with images of face, body and body temperature. Real time alarm for fever and mask usage detection. Standard H.265 compression for high video quality, up to 10TB for each HDD.

DVC DRN-0881TF

Softver PC NVMS TTS:

Temperature measurement

  • Real-time temperature display and full screen display
  • Latest seven-day statistics and statistical overview
  • Real-time statistics: numbers of suspicious temperatures / Total number of passes (today) / Total number of elevated temperatures / Total
  • passage count / analysis of the number of persons with masks
  • Pop-up window of people with fever, information can be edited (including going to the affected area, name, phone
  • number, ID number, address, etc.)
  • The record can be searched by time range, temperature range, whether it has a temperature
  • area, processing status, and keywords, and can also be exported to Excel
  • Historical statistics: maximum 40 days of data statistics; curve chart, bar graph and Excel data can also be exported
  • Adjustable temperature measurement range
NVMS TTS

Face recognition

  • Supports group adding and import of faces
  • The storage of unknown people, persons from the permit list and block list are displayed in different colors.
  • Supports Pop-up alarm window after face capture or match
  • Supports search and playback of images using a face image (captured face image or transmitted face image) and all searched faces
  • Images can be viewed via a list or record on the E-map
  • Supports adding a captured image to the face database in the one-touch image search interface
  • Supports face search similarity setting
NVMS TTS
DTC-24F

DTC-24F

Smart & Flexible Solution

iDEAL FOR MIDDLE PASS FREQUENCE PLACES

HOW TO USE IT

  • Banks
  • Public institutions and business areas
  • Senior homes
  • Restaurants, hotels and camps
  • Entertainment parks
  • Kindergardens
  • Fitness & sports centers

ADVANTAGES

  • Safe, contact free
  • processing od 20 to 30 persons per minute
  • Precise and fast IR sensor temperature measurement under 0.5 seconds
  • Acces control with Face recognition, Mask usage and temperature detection, as well as password protection
  • 20 000 faces capacity, precision of 99,7%
  • Two- way voice communication
  • Voice alarm and menu on the local language
  • Touch screen with access to system settings
  • Stand alone device with the possibility of networking with other devices (access control, video intercom, time attendance, etc.)

SPECIFICATIONS

System:

  • Operative system: Linux
  • Memorija: 8 Gb DDR3 + 16GB EMMC
  • ZScreen: Touchscreen, 8 inch LCD, resolution: 1280×800; contrast: 500:1
  • Lightning: 500 lux
  • Control interface: 12C

Face recognition:

  • Sensor: 1 / 2.7.
  • Lens: 2 Mpx double lens, f= 3.97mm @ F1.6
  • WDR: 120 db
  • Face recognition distance: 0.3m-2m
  • Recognition speed: >0.5 s per person
  • faces capacity: 20 000
  • Precision: 99.7%

Temperature measurement:

  • Temperature range: 32-43 ˚CC
  • UTemperature measurement distance: 0.7-1m

Additional lighting:

  • Type: Soft, white light, IR sensor
  • White light range: 1- 3 m

Audio:

  • Two-way communication: YES (noise reduction and echo cancellation)
  • Audio input: 1 CH built-in microphone
  • Audio output: built- in speaker

Interface:

  • Communication: 10/ 100 Mbps adaptive Ethernet port x1
  • Alarm Input: 2 CH
  • Alarm Output: 2 CH
  • Wiegand interface: Wiegand input/ output (26/34)
  • RS485: RS485x1 (half duplex)
  • Lock output: Relay output, NO / NC (optional), supported delay delay
  • SD card: 1 micro SD card slot, up to 128 Gb
  • USB input: USB x1
  • Keys: 1x Anti- tamper, 1x Exit, 1x Reset

Other:

  • Charging: 12V @1A
  • Energy usage: <12W
  • Weight: cca. 1.2KG
  • “Protection: Surge protection, protection against unstable voltage”
  • Operating environment: 0˚C-40 ˚C, relative humidity <95% (no condensation)
  • Dimensions (DXŠXV) mm: 301.8×138.6×34.2

INSTALLATION

  • It is a ‘stand alone’ device, with the possibility of networking, if needed.
  • When mounting the device, you can choose a wall (comes with the device) and a table mount, also a stand.
  • Adjust device parameters via touch screen.
  • The device can be set by entering the menu via the touch screen, so there is no need to network the device and remote setup via Internet Explorer.
  • To enter the menu, you need a username and password.
  • Compatible with Jantar access control solutions

iDEAL FOR:

Choice between 4 criteria of entry

In the coronavirus pandemic, access control became a key protection factor against the infection. In these times, it is important for access control to be able to verify that entrants comply with health protection measures and to prevent entry for the ones who don’t.

DVC® DTC-24F terminal allows each user to adjust the entry conditions by combining criteria.

DVC IN-K3 PRO
IN-K3 PRO INFRARED TERMOMETAR

Fast & Simple Solution

iDEAL FOR LOW PASS FREQUENCY PLACES

HOW TO USE IT

  • Smaller store
  • Hair and beauty salons
  • Massage rooms
  • Small bussinesses

ADVANTAGES

  • Speed ​​- measurement within 0.1 sec
  • Secure, no contact
  • Economical
  • Audio alarm for high temperature
  • HD LCD screen
  • Connecting and transferring data to a computer

SPECIFICATIONS

  • Accurate temperature measurement using photosensitive distance sensor
  • Maximum precision – deviation up to +/- 0.2 ° C
  • Temperature reading distance 5-10cm
DVC IN-K3 PRO
DVC K9 AUTOMATIC
K9 AUTOMATIC for temperature measurement & disinfection

Fast & Simple Solution

iDEAL ADJUSTABLE SOLUTION

HOW TO USE IT

  • Schools
  • Hospitals
  • Factories
  • Hotels
  • Supermarkets
  • Market places and fairs
  • Stations

ADVANTAGES

  • Fast and effective temperature measurement
  • Sterilization and disinfection of hands
  • Secure, no contact
  • Tank with 1000 ml of disinfectant for longer usage
  • Sound alarm for high temperatures
  • Economically and low energy consumption

SPECIFICATIONS

  • Maximum precision – deviation up to +/- 0.2 ° C
  • Temperature reading distance 5-10cm
  • Large high definition digital display
  • High precision sensor, stable and reliable
DVC K9 AUTOMATIC
