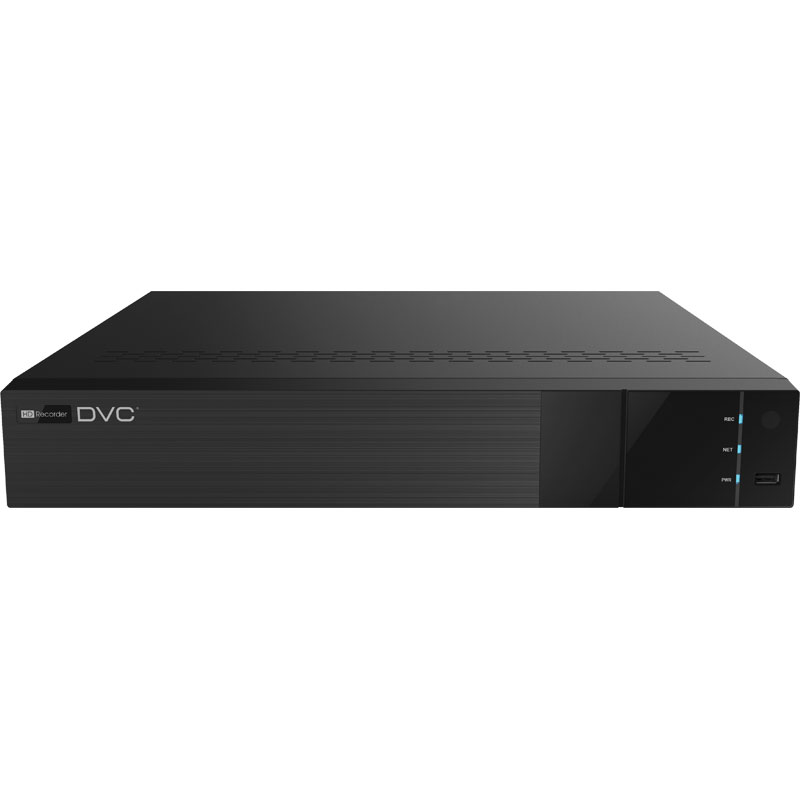

DRA-0851HAN

Samostojeći 8 kanalni AHD 3.0 DVR, pentabrid: 8 analogne/AHD/TVI/CVI kamere + 4 IP kamera, podržava 5Mpx/4Mpx/1080p DVC IP kamere, 1 x SATA + 1 x eSATA, H.265+ kompresija, ukupna brzina snimanja 5Mpx LITE@10fps; 4Mpx LITE, 1080p@12fps; 1080p LITE, 720p, WD1@25fps, RS485, HDMI, VGA, BNC CVBS (SPOT) video izlaz, P2P, LAN, DHCP, DDNS, WEB server, mobile client, dual stream, napajanje 12VDC adapter u kompletu.

Manufacturer

DVC

Technology

HD video

Compression

H.264/H.265/H.265+

Processor

Novatek

AHD to IP channels

8

Number of cameras

8 analog (AHD/TVI/CVI) + 4 IP

HDD

1 x SATA, (1 x 8TB max) + 1 x eSATA

HDMI output

1920 x 1080

VGA output

1920 x 1080

BNC output

Yes

Spot video output

BNC

Max resolution

5Mpx Lite

Recording 5Mpx Lite

5Mpx Lite/10fps

Recording 4Mpx Lite

4Mpx Lite/12fps

Recording 1080 p LITE

1080p LITE/25fps

Recording 1080 p

1080p/12fps

Recording 720 p

720p/25fps

Recording WD1

WD1/25fps

IP Recording

5Mpx, 4Mpx, 3Mpx,1080p@25fps

Max. IP camera bit rate

6Mbps/per channel

Supported IP camera manufacturers

DVC IP

Video analytics

HD + IP camera

Audio input

8

Audio output

1

Alarm input

8

Alarm reset input

2

RS485

1

LAN

10/100Mbps RJ-45

Dual stream

Yes

DVR controlling

Web browser, mouse

Network access

IE, NVMS1000

Access via mobile phone

Android, iPhone

Power supply

12V DC

Consumption

12W with out HDD

Fan

No

Dimensions

300 x 248 x 52 mm

Working temperature

-10°C – 50°C

Air humidity

10% – 90%
