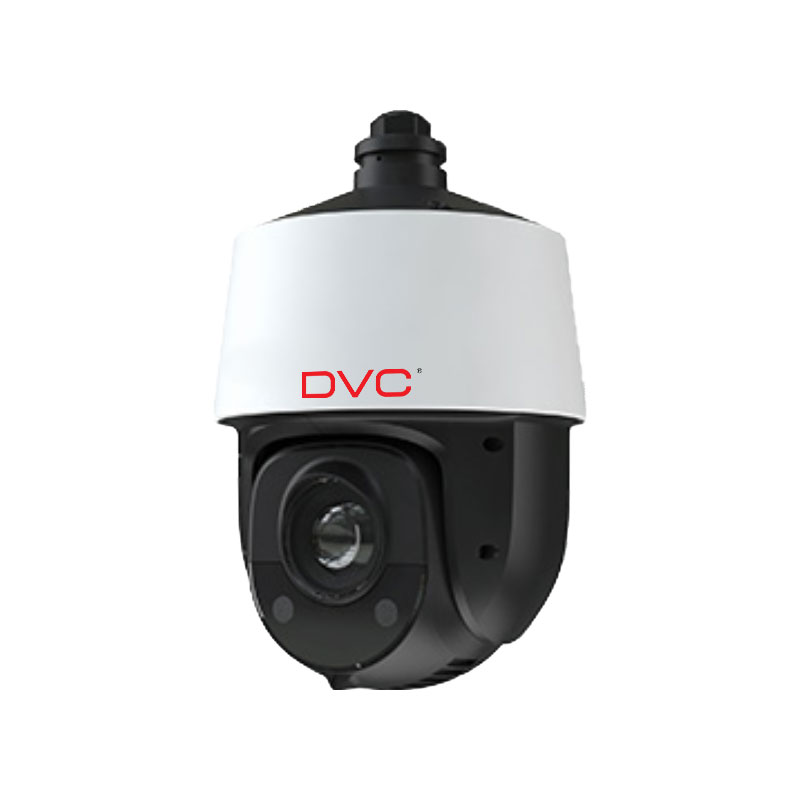

DCN-PM425X0

PTZ IP video kamera, rezolucija 4Mpx@25fps, 25x optički zoom, objektiv 4.8-120 mm, 300 preseta, Pan brzina 0,1° – 80°/sek., SD kartica, 5 array IR LED dometa do 100m, napajanje 12VDC u kompletu, Onvif, IP66 zaštita, zidni nosač u kompletu, Auto tracking, AI VCA.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.5'' APTINA AR0522

DSP

Hisilicon HI3516D

Resolution

1080p, 3Mpx, 4Mpx, 720p@25fps (3 streams)

Bit rate

128Kbps – 8Mbps

Video compression

H.264, SMART H.265

The housing

4" PTZ

Aperture

4.8 – 120mm (25x zoom)

Minimum illumination (Lux)

0.01Lux@F1.6 – 3.5, 0Lux IR ON

Onvif

Yes

Video analytics

AI: Tracking of persons and vehicles, Auto Tracking., crossing the line, exceptions, Face recognition, intrusion into space, tracking of the object

SD card

Up to 128 Gb

Audio input

No

IR

up to 100 m

Number of IR LED

5 x array

Day / night function

EDN

Dynamic range

True WDR (120 dB)

HLC

Yes

BLC

Yes

Noise reduction

3D-DNR

Alarm input / output

0/0

Panoramic angle

360 ° (unlimited)

Vertical angle

0° – 90°

Panoramic speed

0.1-80 ° / sec.

Tilt speed

0.1-80 ° / sec.

Number of memories

300

Number of patrolling

8 x 16 memory

Controlling

TCP/IP

Antivandal housing

No

IP protection

IP66

IK protection

No

Power supply

12VDC, PoE+ (802.3at class3)

Consumption

22W

Working temperature

-30°C + 55°C

Dimensions

Ø173 x 247mm

Working humidity

0% – 95%
