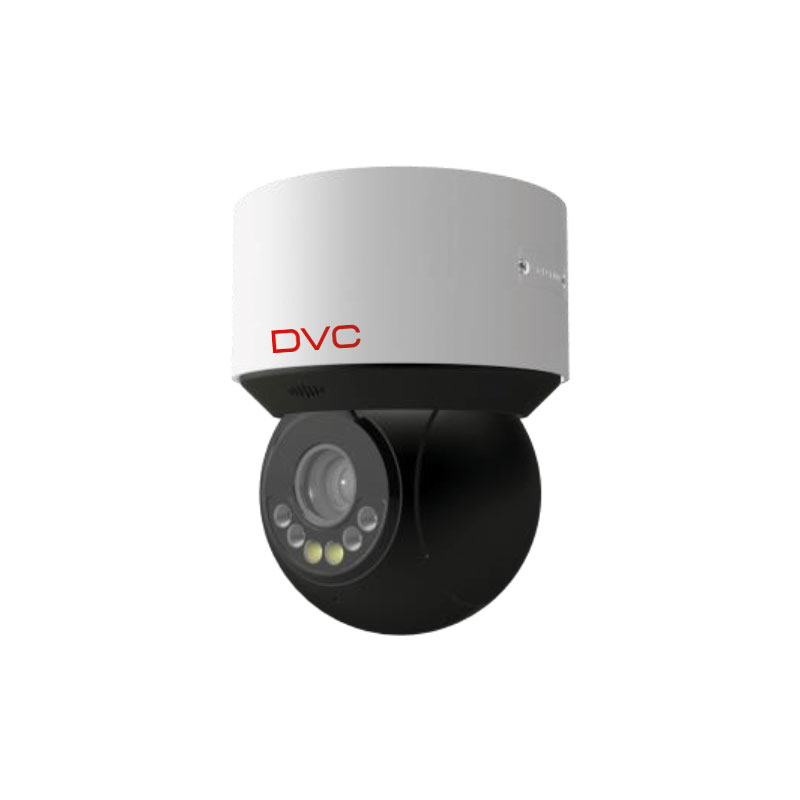

DCN-PM404X50
3” PTZ IP video kamera, rezolucija 4Mpx@25fps, 25x optički zoom, objektiv 4.8-120 mm, 300 preseta, Pan brzina 0,1° – 80°/sek., SD kartica, 5 array IR LED dometa do 100m, napajanje 12VDC u kompletu, Onvif, IP66 zaštita, True WDR 120dB, zidni nosač u kompletu, Auto tracking, AI VCA, zidni nosač u kompletu.
| Manufacturer | DVC |
|---|---|
| Technology | IP video |
| Optical sensor | 1/2.5'' APTINA AR0522 |
| DSP | Novatek |
| Resolution | 1080p, 3Mpx, 4Mpx, 720p@25fps (3 streams) |
| Bit rate | 128Kbps – 8Mbps |
| Video compression | H.264, SMART H.265 |
| The housing | 3" PTZ |
| Lens | (4x zoom), 2.8-12mm |
| Minimum illumination (Lux) | 0.01 Lux (1.6, AGC ON); 0 Lux with IR, AGC ON); B/W: 0.002 Lux |
| Onvif | Yes |
| Video analytics | AI: Tracking of persons and vehicles, Auto Tracking., crossing the line, exceptions, Face recognition, intrusion into space, tracking of the object |
| SD card | Up to 128 Gb |
| Audio input / output | line-in / line-out |
| IR | up to 50 m |
| Number of IR LED | 4 x array |
| White Light | up to 30 m |
| Loudspeaker | up to 20 m for audible warnings, YES |
| Day / night function | ICR |
| Dynamic range | True WDR (120 dB) |
| HLC | Yes |
| BLC | Yes |
| Noise reduction | 3D-DNR |
| Alarm input / output | 1/1 |
| Panoramic angle | 360 ° (unlimited) |
| Vertical angle | 51° – 18° |
| Panoramic speed | 0.1 ° – 60 ° / sec |
| Tilt speed | Max. 50 °/SEK |
| Number of memories | 300 |
| Number of patrolling | 8 x 16 memory |
| Controlling | TCP/IP |
| Antivandal housing | Yes |
| IP protection | IP66 |
| IK protection | IK10 |
| Power supply | 12V 2.5A, PoE+ |
| Consumption | 25W |
| Working temperature | -30°C + 55°C |
| Dimensions | Ø130mm x 162 mm |
| Working humidity | 0% – 90% |
