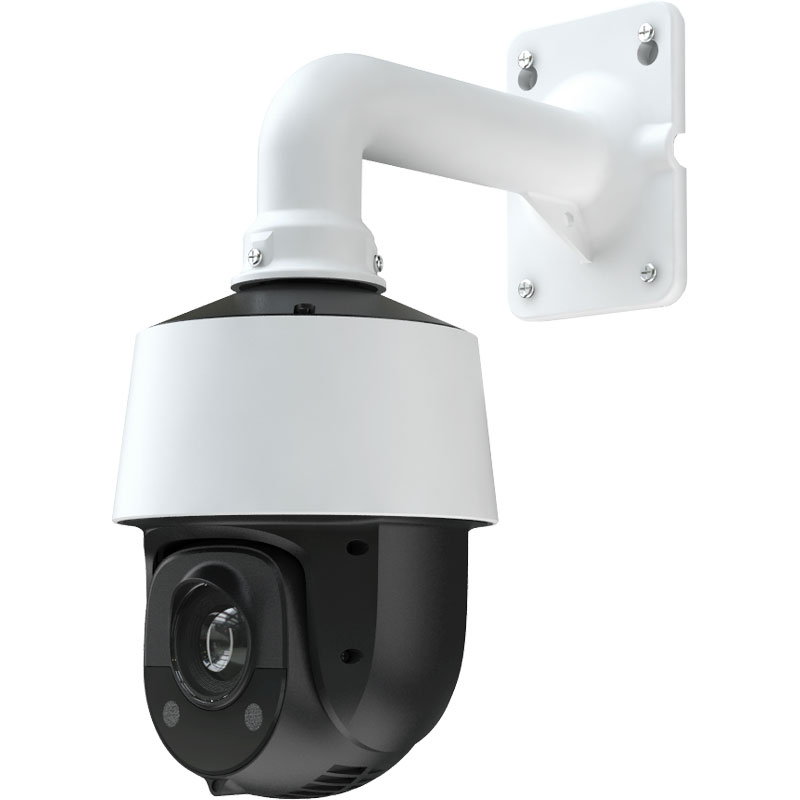

DCN-PM220X0

PTZ IP video kamera, rezolucija 2Mpx@25fps, 20x optički zoom, objektiv 5.5-110 mm, 360 preseta, Pan brzina 0,5° – 80°/sek., SD kartica, 6 array IR LED dometa do 150m, napajanje PoE/12V DC u kompletu, Onvif, IP66 zaštita, videoanalitika, zidni nosač u kompletu.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.8" Sony Starvis IMX327

DSP

Hisilicon HI3516D

Resolution

1080p, 720p@25fps (3 streams)

Bit rate

128Kbps – 6Mbps

Video compression

H.265

The housing

4" PTZ

Aperture

20 x zoom , 5.5 – 110 mm

Minimum illumination (Lux)

0.006Lux@F1.6 – F4.5, 0Lux IR ON

Onvif

Yes

Video analytics

breaking into the space, counting people., crossing the line, tracking the object

SD card

Up to 128 Gb

Audio input

No

IR

up to 150 m

Number of IR LED

6 x array

Day / night function

EDN

Dynamic range

True WDR (120 dB)

HLC

Yes

BLC

Yes

Noise reduction

3D-DNR

Alarm input / output

0/0

Panoramic angle

360 ° (unlimited)

Tilt angle

-5°-90°

Panoramic speed

0, 5° – 80°/sek

Tilt speed

0, 5° – 80°/sek

Number of memories

360

Number of patrolling

8 x 16 memory

Controlling

TCP/IP

Antivandal housing

No

IP protection

IP66

IK protection

No

Power supply

12VDC, PoE+ (802.3at class3)

Consumption

18W

Working temperature

-30°C + 55°C

Dimensions

Ø173 x 247mm
