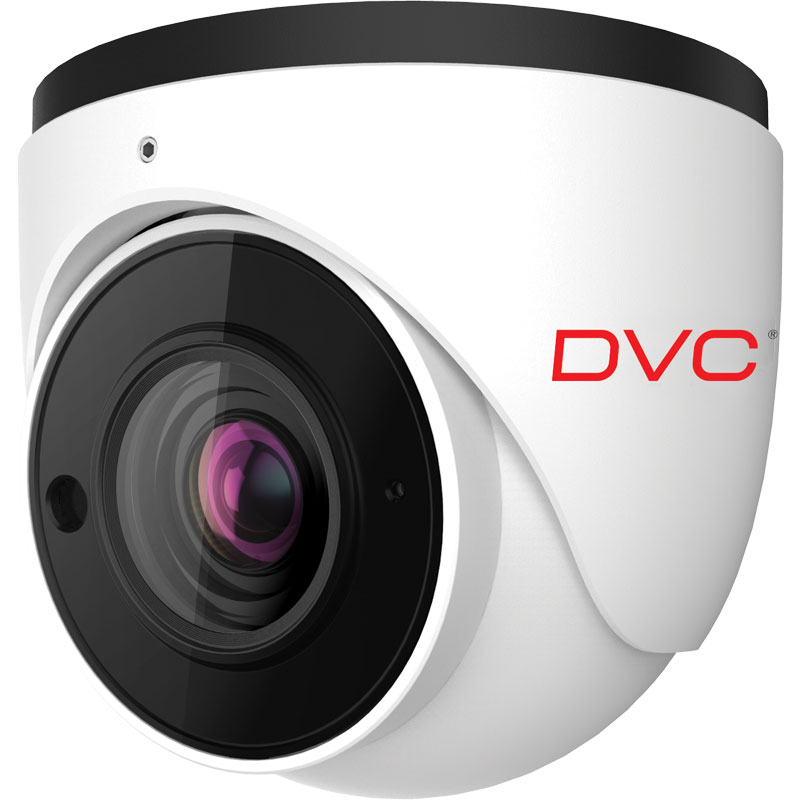

DCN-TF2283AI

Turret IP video kamera, rezolucija 2Mpx/25fps, objektiv 2.8 mm, SMART H.265, 1 x Array IR LED dometa 20-30 m, True WDR 120dB, 12VDC/PoE, Onvif, IP67 zaštita, AI videoanalitika, face detection.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.8'' Sony Starvis IMX307 Starlight

DSP

Hisilicon HI3516CV500

Resolution

1080p, 720p@25fps (3 streams)

Bit rate

64Kbps – 6Mbps

Video compression

SMART H.265

The housing

Turret

Lens

2,8 mm

Minimum illumination (Lux)

0.002Lux@F1.2, 0Lux IR ON

The horizontal angle

108°

Onvif

Yes

Video analytics

AI: Crossing the line, tracking the object, intrusion into space, counting persons, face detection / capture, exceptions.

SD card

Up to 128 Gb

Audio

1 x In/ built-in microphone

IR

20-30m

Number of IR LED

1 x Array Black glass IR LED

Day / night function

ICR

Dynamic range

True WDR (120 dB)

HLC

Yes

BLC

Yes

Noise reduction

2D/3D DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE

Consumption

7,5W

Working temperature

-30°C up to 60°C

Dimensions

Φ94.6 x 82.8 mm
