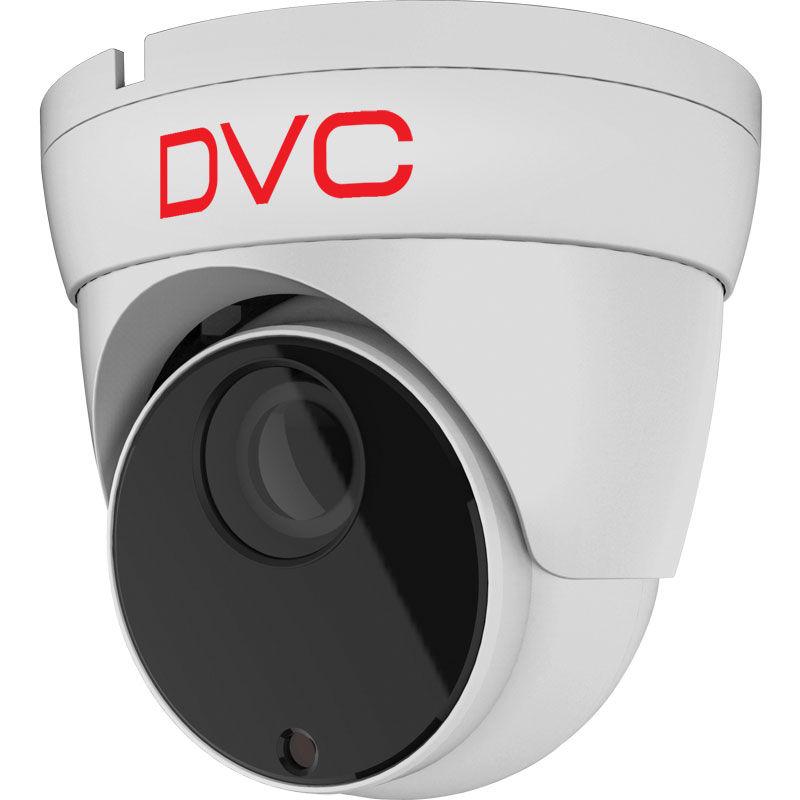

DCA-TV2145SW

Turret AHD 2.0 video kamera, rezolucije 1080p, 1/2.8” Sony Starlight CMOS, objektiv 2.7 – 13.5 mm, osjetljivost 0.001Lux@F1.2, 30 SMD IR LED dometa 35-45m, True WDR, napajanje 12VDC, IP67.

Manufacturer

DVC

Technology

AHD, HD-CVI, HD-TVI, analogue

Optical sensor

1/2.8" Sony Starvis IMX307 Starlight

DSP

Fulhan FH8550M

Max resolution

1080p

The housing

Turret

Lens

2.7 – 13.5mm

Minimum illumination (Lux)

0.001Lux@F1.2, 0Lux IR ON

The horizontal angle

109° – 32°

Video output

VBS 1.0Vp-p/75 Ohm

IR

35-45m

Number of IR LED

30 x SMD LED

Day / night function

ICR

OSD

Control Over Coax (COC)

Dynamic range

True WDR (120 dB)

HLC

Yes

BLC

Yes

Image stabilization (AGC)

Yes

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

No

IP protection

IP67

IK protection

No

Power supply

12VDC

Consumption

5W

Working temperature

-30°C + 60°C

Dimensions

Ø135.4 x 127.7mm
