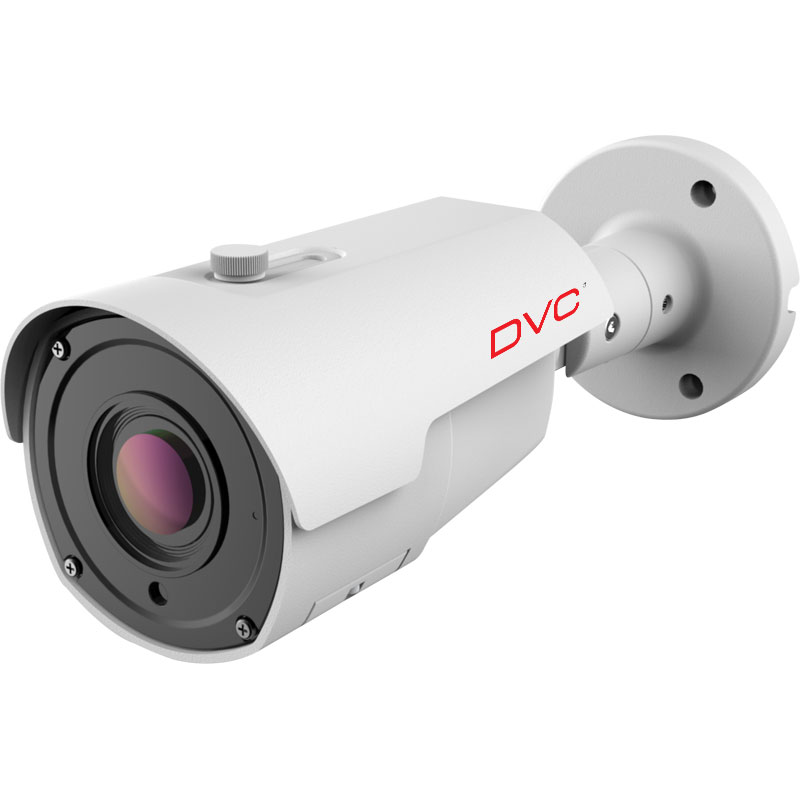

DCA-BF8364

Bullet AHD 4.0 video kamera, rezolucije 8Mpx, 1/2.7″ SmartSens SC8238, objektiv 3.6 mm, osjetljivost 0.05Lux@F1.2, IR LED dometa do 35 m, napajanje 12VDC, IP67.

Manufacturer

DVC

Technology

AHD, HD-CVI, HD-TVI, analogue

Optical sensor

1/2.7'' SmartSens SC8238

DSP

NEXTCHIP NVP2481

Max resolution

8Mpx

The housing

Bullet

Lens

3,6 mm

Minimum illumination (Lux)

0.05Lux@F1.2, 0Lux IR ON

The horizontal angle

87.4°

Video output

VBS 1.0Vp-p/75 Ohm

IR

Up to 35m

Number of IR LED

30 x SMD LED

Day / night function

ICR

OSD

Control Over Coax (COC)

Dynamic range

D-WDR

HLC

Yes

BLC

Yes

Image stabilization (AGC)

Yes

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

No

IP protection

IP67

IK protection

No

Power supply

12V DC

Consumption

3,5 W

Working temperature

-30°C up to 60°C

Dimensions

239 x 84 x 79mm
