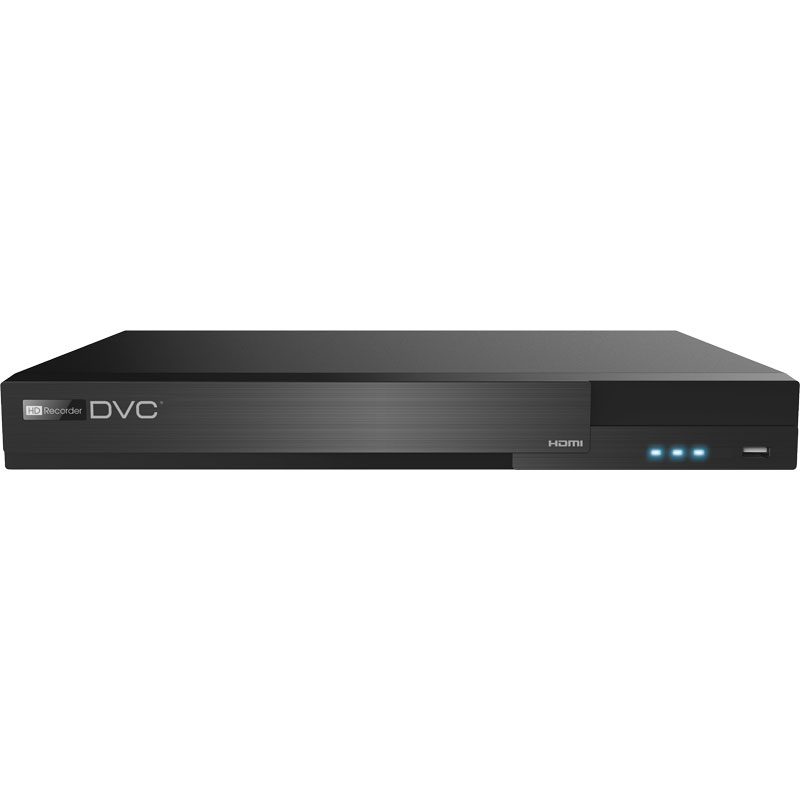

DRN-1682R
Samostojeći 16 kanalni NVR, Face recognition funkcija, podržava 8Mpx/5Mpx/4Mpx/3Mpx/1080p DVC IP kamere, 2 x HDD, quadpleks, H.264/H.265 kompresija, brzina snimanja 8Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p@25fps po kanalu, RS485, HDMI 4K i VGA video izlaz, Alarm in/out, Audio in/out, P2P, LAN, DHCP, DDNS, WEB server, mobile client, dual stream, napajanje 12 VDC u kompletu.
| Manufacturer | DVC |
|---|---|
| Technology | IP video |
| Compression | H.264/H.265 |
| Processor | Hisilicon Hi3536 |
| Number of cameras | 1.0 Vp-p, 75 ohm, Video inputs: BNC x 16 |
| HDD | (2 x 8TB max), 2 x SATA |
| HDMI output | HDMI 2K/4K |
| VGA output | 1920 x 1080 |
| BNC output | No |
| Spot video output | No |
| Video analytics | Yes + Face recognition |
| Fisheye dewarping | Yes |
| Max resolution | up to the 8Mpx (depends on camera) |
| Recording 8Mpx | 8Mpx/25fps |
| Recording 5Mpx | 5Mpx/25fps |
| Recording 4Mpx | 4Mpx/25fps |
| Recording 3Mpx | 3Mpx/25fps |
| Recording 1080 p | 1080p/25fps |
| Input bandwidth | 160Mbps |
| Bandwidth | 160Mbps |
| Supported IP camera manufacturers | Dahua, DVC, Hikvision, Vivotek |
| Audio input | 1 HDMI |
| Alarm input | 8 |
| Alarm reset input | 4 |
| RS485 | Yes |
| LAN | Giga Ethernet, RJ-45 |
| Dual stream | Yes |
| DVR controlling | mouse, Web browser |
| Network access | IE, NVMS1000 |
| Access via mobile phone | Android, iPhone |
| Power supply | DC 12V 3A |
| Consumption | 10W without HDD |
| Fan | Yes |
| Dimensions | 380 x 268 x 45 mm |
| Working temperature | -10 ° C – 50 ° C |
| Air humidity | 10% – 90% |
