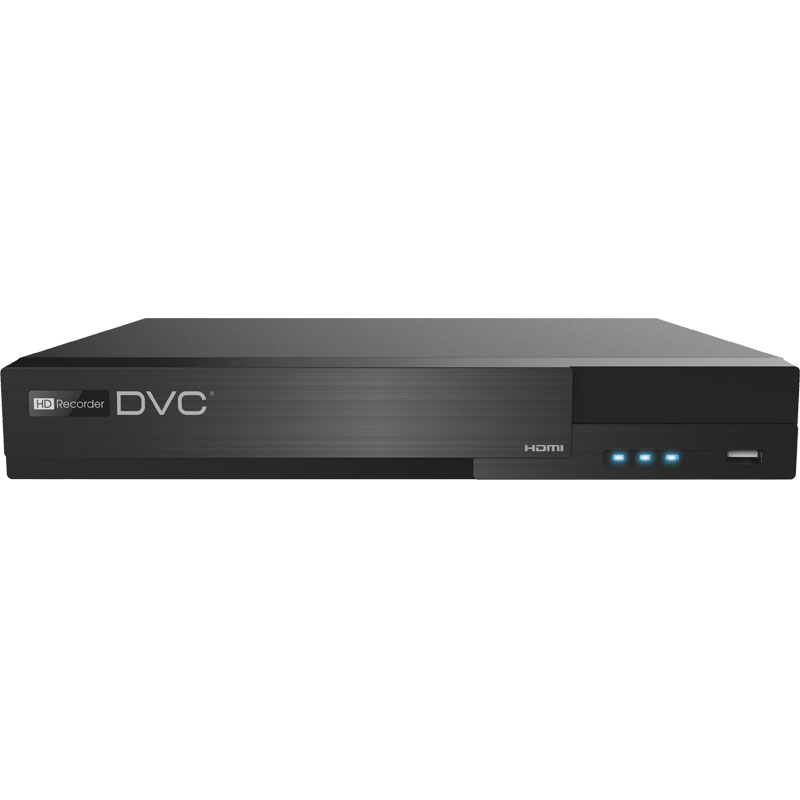

DRN-1681R
Samostojeći 16 kanalni NVR, podržava 8Mpx/5Mpx/4Mpx/3Mpx/1080p DVC IP kamere, 1 x HDD, quadpleks, H.264/H.265 kompresija, brzina snimanja 8Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p@25fps po kanalu, HDMI 4K i VGA video izlaz, P2P, LAN, DHCP, DDNS, WEB server, mobile client, dual stream, napajanje 12 VDC, napajač u kompletu.
| Manufacturer | DVC |
|---|---|
| Technology | IP video |
| Compression | H.264/H.265 |
| Processor | Hisilicon Hi3536C |
| Number of cameras | 16 |
| HDD | 1 x SATA, (8TB max) |
| HDMI output | HDMI 2K/4K |
| VGA output | 1920 x 1080 |
| BNC output | No |
| Spot video output | No |
| Max resolution | 8Mpx |
| Recording 8Mpx | 8Mpx/25fps |
| Recording 5Mpx | 5Mpx/25fps |
| Recording 4Mpx | 4Mpx/25fps |
| Recording 3Mpx | 3Mpx/25fps |
| Recording 1080 p | 1080p/25fps |
| Input bandwidth | 112Mbps |
| Bandwidth | 112Mbps |
| Supported IP camera manufacturers | DVC, Dahua, Hikvision |
| Audio input | 1 + 16 (from an IP camera) |
| Audio output | 1 |
| Alarm input | 4 + 16 (from IP camera) |
| Alarm reset input | 1 |
| RS485 | 2 |
| LAN | 10/100/1000 Mbps RJ-45 |
| Dual stream | Yes |
| DVR controlling | Web browser, mouse |
| Network access | IE, NVMS1000 |
| Access via mobile phone | Android, iPhone |
| Power supply | DC 12V 1.5A (power supply included) |
| Consumption | 10W without HDD |
| Fan | No |
| Dimensions | 300 x 248 x 52 mm |
| Working temperature | -10°C – 50°C |
| Air humidity | 10% – 90% |
