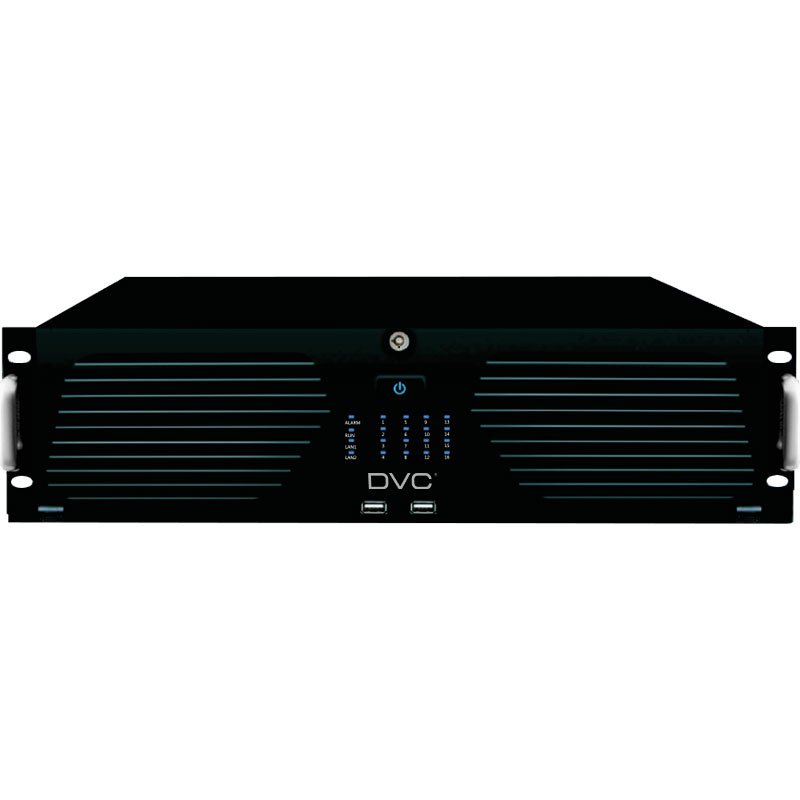

DRN-1281216RR

Samostojeći 128 kanalni NVR, podržava 12/8/5/4/3/1080p DVC IP kamere, 16 x HDD,RAID 0,1,5,6,10; quadpleks, H.264/H.265 kompresija, brzina snimanja 12Mpx, 8Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p@25fps, RS485, 2 x HDMI 4K i VGA video izlaz, napajanje 230 VAC.

Manufacturer

DVC

Technology

IP video

Compression

H.264/H.265

Processor

Hisilicon Hi3536 + Hisilicon Hi3559A

Number of cameras

128/1080p  256/720p

HDD

1, 10, 5, 6, max 10TB po HDD; e-SATA × 1, RAID0, SATA × 16

HDMI output

HDMI 2K x 3, HDMI 4K x 1, VGA Full HD x 1

VGA output

1920 x 1080

BNC output

No

Spot video output

No

Recording 12Mpx

12Mpx/25fps

Max resolution

Up to 12 MP resolution

Recording 5Mpx

5Mpx/25fps

Recording 4Mpx

4Mpx/25fps

Recording 3Mpx

3Mpx/25fps

Recording 1080 p

1080p/25fps

Input bandwidth

640Mbps

Bandwidth

640Mbps

Supported IP camera manufacturers

Dahua, DVC, Hikvision

Fisheye dewarping

Yes

Audio input

1 HDMI

Alarm input

24

Alarm reset input

8

RS485

Yes

LAN

2 × Giga Ethernet, RJ-45

Dual stream

Yes

DVR controlling

mouse, Web browser

Network access

Firefox, IE, NVMS1000

Access via mobile phone

Android, iPhone

Power supply

3.0 ~ 1.5A, 50/60Hz, AC 100-240 V

Consumption

50W no HDD

Fan

Yes

Dimensions

437 x 483 x 143 mm

Working temperature

-15°C – 50°C

Air humidity

10% – 90%
