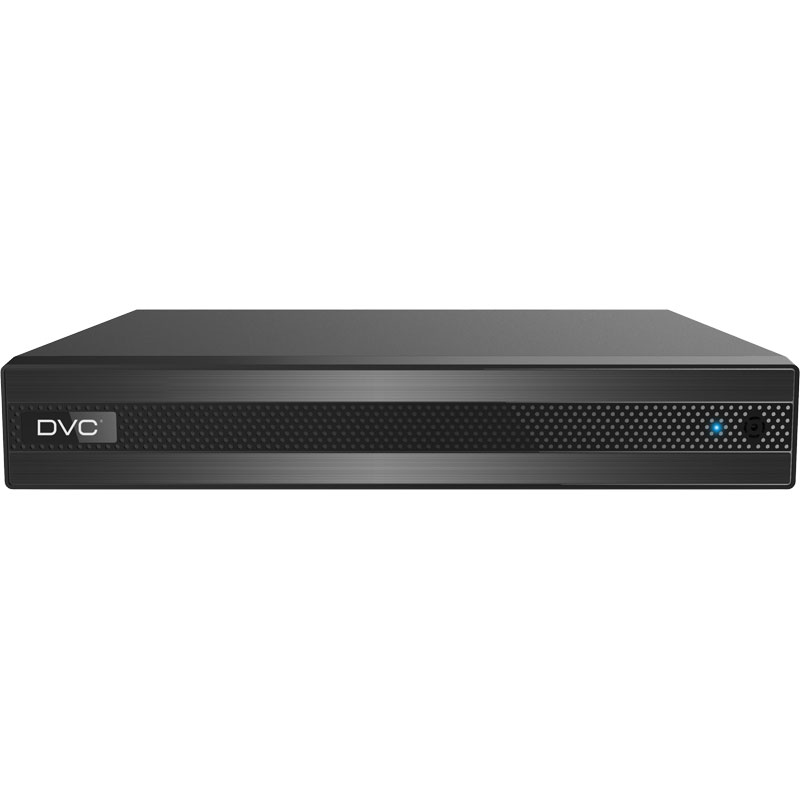

DRN-0461R
Samostojeći 4 kanalni NVR, podržava 6Mpx/5Mpx/4Mpx/3Mpx/1080p DVC IP kamere, 1 x HDD, quadpleks, H.264/H.265 kompresija, brzina snimanja 6Mpx, 5Mpx, 4Mpx, 3Mpx, 1080p@25fps po kanalu, HDMI i VGA video izlaz, napajanje 12 VDC, napajač u kompletu.
Manufacturer | DVC |
---|---|
Technology | IP video |
Compression | H.264, H.264+, H.265, H.265+ |
Processor | MStar SSR621Q |
Number of cameras | 4 |
HDD | 1 x SATA (1 x 10 TB max.) |
HDMI output | Yes |
VGA output | Yes |
Max resolution | 6Mpx |
Recording 6Mpx | 6Mpx@25fps |
Recording 5Mpx | 5Mpx@25fps |
Recording 4Mpx | 4Mpx@25fps |
Recording 3Mpx | 3Mpx@25fps |
Recording 2Mpx | 2Mpx@25fps |
Input bandwidth | 40Mbps |
Transmission bandwidth | 40Mbps |
Supported IP camera manufacturers | DVC, Dahua, Hikvision |
Audio | 4 (with IP cameras) |
Alarm output | No |
RS485 | No |
LAN | 10/100 Mbps RJ-45 |
Dual stream | Yes |
DVR control | Web browser, mouse |
Network access | IE, NVMS2.0 |
Mobile access | Android, iOS |
Power supply | 12V DC |
Consumption | <5W without HDD |
Fan | No |
Dimensions | 255 x 222 x 42 mm |
Operating temperature | -10°C – 50°C |
Operating humidity | 10% – 90% |
Channel number | 4 |
