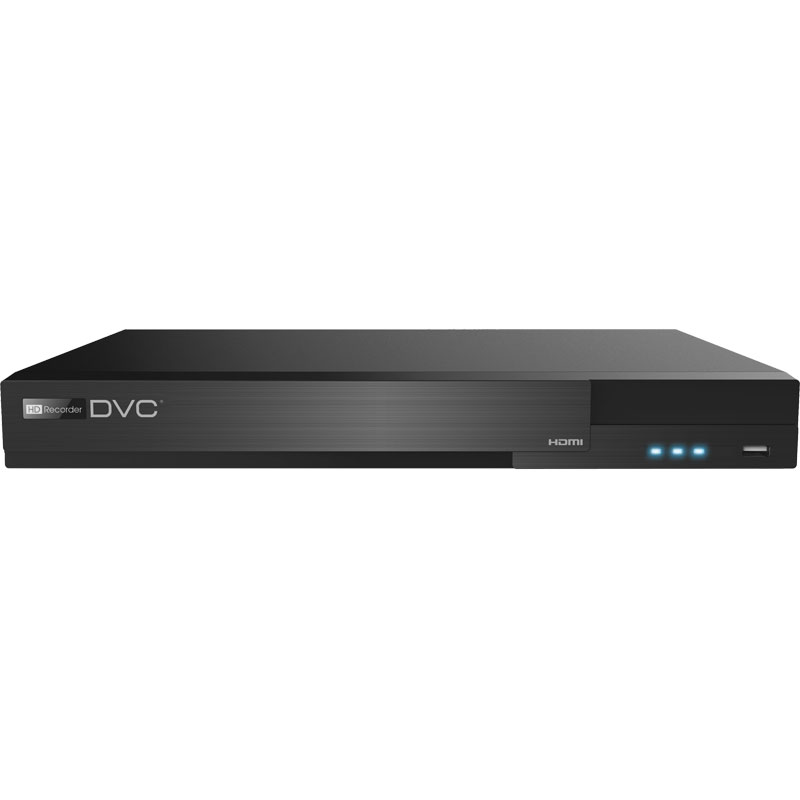

DRA-1682HN
Samostojeći 16 kanalni AHD 4.0 DVR, pentabrid: 16 analogne/AHD/TVI/CVI kamere + 8 IP kamera, podržava 8Mpx/5Mpx/4Mpx/1080p DVC IP kamere, 2 x SATA, H.265 kompresija, brzina snimanja 8Mpx@6fps; 5Mpx@12fps; 5Mpx LITE@20fps; 1080p, 720p, WD1@25fps, RS485, HDMI 4K, VGA, BNC CVBS (SPOT) video izlaz, P2P, LAN, DHCP, DDNS, WEB server, mobile client, dual stream, napajanje 12VDC adapter u kompletu.
| Manufacturer | DVC |
|---|---|
| Technology | HD video |
| Compression | H.264, H.265 |
| Processor | Novatek |
| Number of cameras | 16 analogue (AHD/TVI/CVI) + 8 IP |
| AHD to IP channels | 8 |
| HDD | 2 x SATA (2 x 8 TB max.) |
| HDMI output | HDMI 2K/4K |
| VGA output | 1920 x 1080 |
| BNC output | Yes |
| Spot output | BNC |
| Max resolution | 8Mpx |
| Recording 8Mpx | 8Mpx@6fps |
| Recording 5Mpx | 5Mpx@12fps |
| Recording 5Mpx Lite | 5Mpx LITE@20fps |
| Recording 4Mpx | 4Mpx@12fps |
| Recording 4Mpx Lite | 4Mpx LITE@25fps |
| Recording 3Mpx | 3Mpx@12fps |
| Recording 2Mpx | 2Mpx@25fps |
| Recording 1Mpx | 1Mpx@25fps |
| Recording WD1 | WD1@25fps |
| Recording IP | 8Mpx, 5Mpx, 4Mpx, 3Mpx, 2Mpx@25fps |
| Output bandwidth | 96Mbps |
| Input bandwidth | 32Mbps |
| Supported IP camera manufacturers | DVC IP |
| Video analytics | HD + IP kamere |
| Audio | 1 x out |
| Alarm inputs / outputs | No |
| Alarm output | No |
| RS485 | Yes |
| LAN | 10/100/1000 Mbps RJ-45 |
| Dual stream | Yes |
| DVR control | Web browser, mouse |
| Network access | IE, NVMS1000 |
| Mobile access | Android, iOS |
| Power supply | 12V DC |
| Consumption | <30W without HDD |
| Fan | Yes |
| Dimensions | 380 x 268 x 52 mm |
| Operating temperature | -10°C – 50°C |
| Operating humidity | 10% – 90% |
