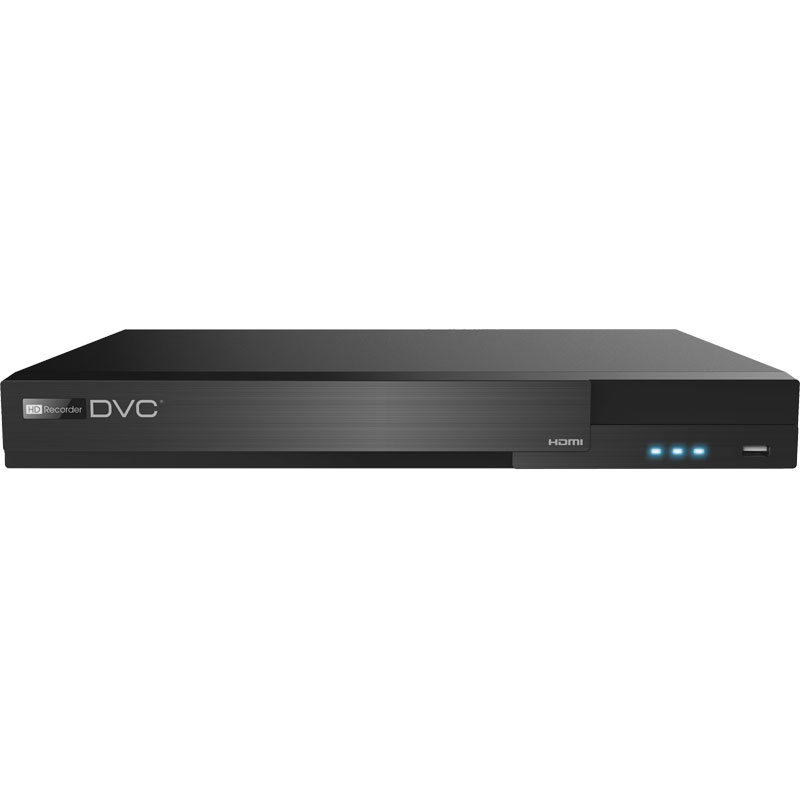

DRA-1652HAN

Samostojeći 16 kanalni AHD 3.0 DVR, pentabrid: 16 analogne/AHD/TVI/CVI kamere + 8 IP kamera, podržava 5Mpx/4Mpx/1080p DVC IP kamere, 2 x SATA + 1 x eSATA, H.265+ kompresija, brzina snimanja 5Mpx LITE@10fps; 4Mpx LITE, 1080p@12fps; 1080p LITE, 720p, WD1@25fps, RS485, HDMI, VGA, BNC CVBS (SPOT) video izlaz, P2P, LAN, DHCP, DDNS, WEB server, mobile client, dual stream, napajanje 12VDC adapter u kompletu.

Manufacturer

DVC

Technology

HD video

Compression

H.264/H.265/H.265+

Processor

Novatek

Number of cameras

16 analog (AHD/TVI/CVI) + 8 IP

AHD to IP channels

8

HDD

2 x SATA, (2 x 8TB max) + 1 x eSATA

HDMI output

1920 x 1080

VGA output

1920 x 1080

BNC output

Yes

Spot video output

BNC

Max resolution

5Mpx Lite

Recording 5Mpx Lite

5Mpx Lite/10fps

Recording 4Mpx Lite

4Mpx Lite/12fps

Recording 1080 p LITE

1080p LITE/25fps

Recording 1080 p

1080p/12fps

Recording 720 p

720p/25fps

Recording WD1

WD1/25fps

IP Recording

5Mpx, 4Mpx, 3Mpx,1080p@25fps

Max. IP camera bit rate

6Mbps/per channel

Supported IP camera manufacturers

DVC IP

Video analytics

HD + IP camera

Audio input

8

Audio output

1

Alarm input

16

Alarm reset input

4

RS485

1

LAN

10/100/1000 Mbps RJ-45

Dual stream

Yes

DVR controlling

Web browser, mouse

Network access

IE, NVMS1000

Access via mobile phone

Android, iPhone

Power supply

12V DC

Consumption

15W without HDD

Fan

Yes

Dimensions

380 x 268 x 52 mm

Working temperature

-10°C – 50°C

Air humidity

10% – 90%
