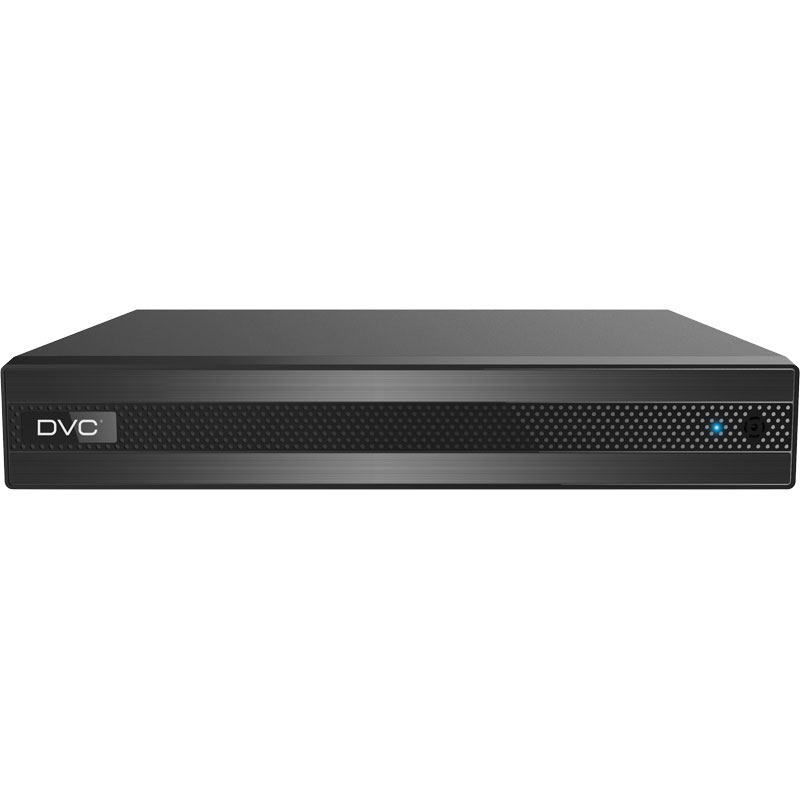

DRA-1621HN

Samostojeći 16 kanalni AHD 2.0 DVR, pentabrid: 16 analogne/AHD/TVI/CVI kamere + 2 IP kamera, podržava 1080p DVC IP kamere, 1 x SATA, H.265 kompresija, brzina snimanja 1080p LITE, 720p@12fps, 720p LITE@WD1@25fps, HDMI, VGA video izlaz, P2P, LAN, DHCP, DDNS, WEB server, mobile client, dual stream, napajanje 12VDC adapter u kompletu.

Manufacturer

DVC

Technology

HD video

Compression

H.264/H.264+/H.265/H.265+

Processor

Novatek

Number of cameras

16 analogne (AHD/TVI/CVI) + 2 IP

HDD

(8TB max), 1 x SATA

HDMI output

Yes

VGA output

1920 x 1080

BNC output

Yes

Spot video output

BNC

Max resolution

1080 p LITE

Recording 1080 p LITE

1080p LITE/12fps

IP Recording

1080p@25fps, 3Mpx, 4Mpx, 5Mpx

Max. IP camera bit rate

6Mbps per channel

Supported IP camera manufacturers

DVC IP

Audio input

1 HDMI

Alarm input

No

Alarm reset input

No

RS485

No

LAN

10/100Mbps RJ-45

Dual stream

Yes

DVR controlling

mouse, Web browser

Network access

IE, NVMS2.0

Access via mobile phone

Android, iPhone

Power supply

DC 12V 3A

Consumption

10W without HDD

Fan

No

Dimensions

255 x 234 x 42 mm

Working temperature

-10 ° C – 50 ° C

Air humidity

10% – 90%
