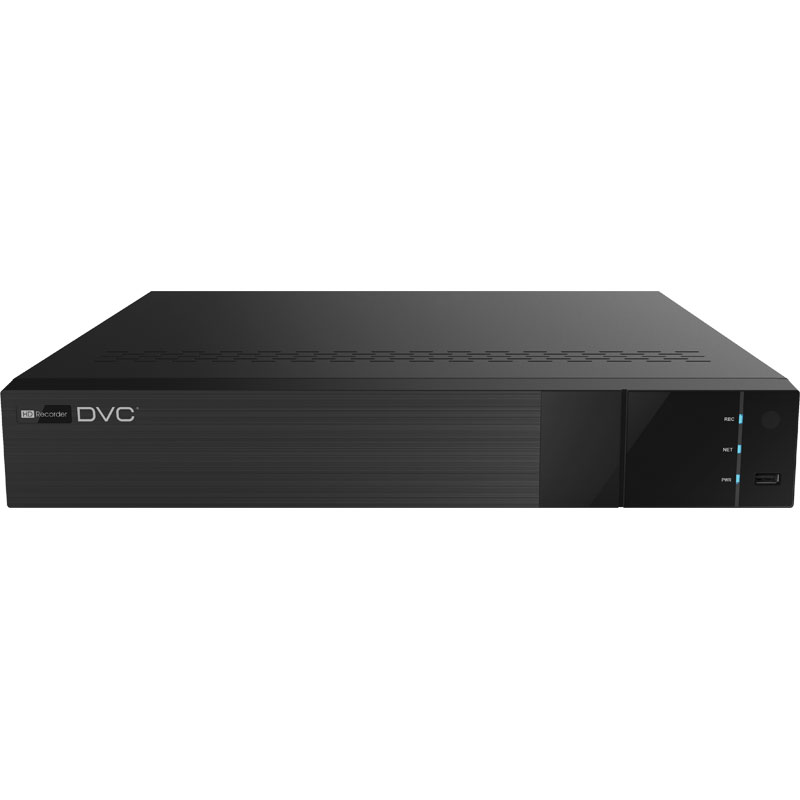

DRA-0881HN

Samostojeći 8 kanalni AHD 4.0 DVR, pentabrid: 8 analogne/AHD/TVI/CVI kamere + 8 IP kamera, podržava 8Mpx/5Mpx/4Mpx/1080p DVC IP kamere, 1 x SATA, H.265 kompresija, brzina snimanja 8Mpx@6fps; 5Mpx@12fps; 5Mpx LITE@20fps; 1080p, 720p, WD1@25fps, RS485, HDMI 4K, VGA, BNC CVBS (SPOT) video izlaz, P2P, LAN, DHCP, DDNS, WEB server, mobile client, dual stream, napajanje 12VDC adapter u kompletu.

Manufacturer

DVC

Technology

HD video

Compression

H.264/H.265

Processor

Novatek

Number of cameras

8 analog (AHD/TVI/CVI) + 8 IP

AHD to IP channels

8

HDD

1 x SATA, (8TB max)

HDMI output

HDMI 2K/4K

VGA output

1920 x 1080

BNC output

Yes

Spot video output

BNC

Max resolution

8Mpx

Recording 8Mpx

8Mpx/6fps

Recording 5Mpx

5Mpx/12fps

Recording 5Mpx Lite

5Mpx Lite/20fps

Recording 4Mpx

4Mpx/12fps

Recording 4Mpx Lite

4Mpx Lite/25fps

Recording 3Mpx

3Mpx/12fps

Recording 1080 p

1080p/25fps

Recording 720 p

720p/25fps

Recording WD1

WD1/25fps

IP Recording

8Mpx, 5Mpx, 4Mpx, 3Mpx,1080p@25fps

Input bandwidth

64Mbps

Supported IP camera manufacturers

DVC IP

Video analytics

HD + IP camera

Audio input

1

Audio output

1

Alarm input

No

Alarm reset input

No

RS485

1

LAN

10/100Mbps RJ-45

Dual stream

Yes

DVR controlling

Web browser, mouse

Network access

IE, NVMS1000, NVMS2.0

Access via mobile phone

Android, iPhone

Power supply

12V DC

Consumption

15W without HDD

Fan

No

Dimensions

255 x 233 x 42 mm

Working temperature

-10°C – 50°C

Air humidity

10% – 90%
