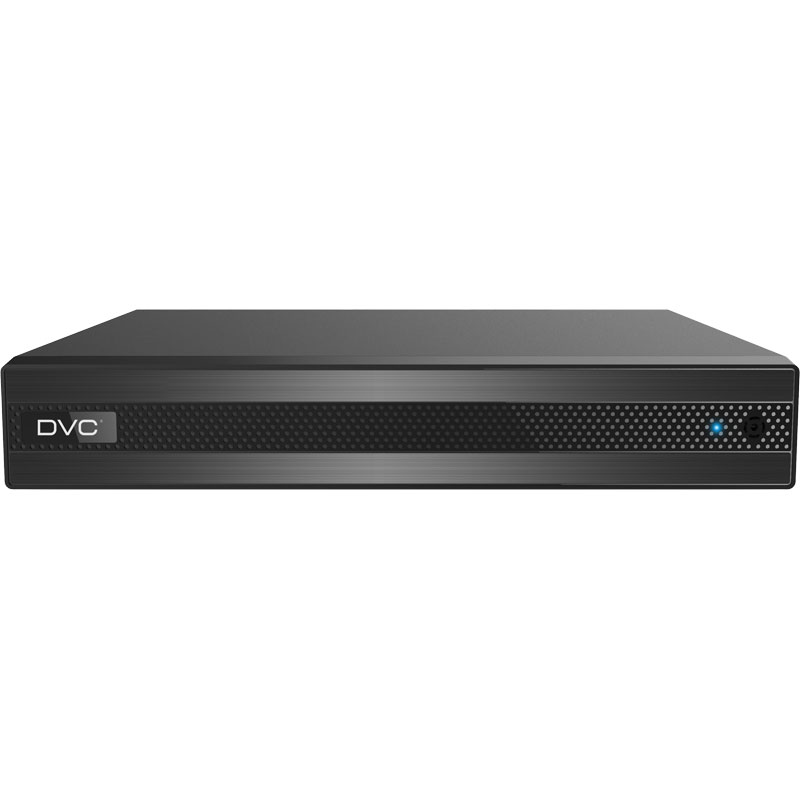

DRA-0421RN
Samostojeći 4 kanalni AHD 2.0 DVR, pentabrid: 4 analogne/AHD/TVI/CVI kamere + 2 IP kamera, podržava 1080p DVC IP kamere, 1 x SATA, H.265 kompresija, brzina snimanja 1080p LITE, 720p, WD1@25fps, HDMI, VGA video izlaz, P2P, LAN, DHCP, DDNS, WEB server, mobile client, dual stream, napajanje 12VDC adapter u kompletu.
| Manufacturer | DVC |
|---|---|
| Technology | HD video |
| Compression | H.265 |
| Processor | Novatek |
| Number of cameras | 4 analog (AHD/TVI/CVI) + 2 IP |
| HDD | 1 x SATA, (8TB max) |
| HDMI output | 1920 x 1080 |
| VGA output | 1920 x 1080 |
| BNC output | No |
| Spot video output | No |
| Max resolution | 1080p LITE |
| Recording 1080 p LITE | 1080p LITE/25fps |
| Recording 720 p | 720p/25fps |
| Recording 720 p LITE | 720p LITE/25fps |
| Recording WD1 | WD1/25fps |
| IP Recording | 1080p@25fps |
| Max. IP camera bit rate | 4Mbps/per channel |
| Supported IP camera manufacturers | DVC IP |
| Audio input | 1 |
| Audio output | 1 |
| Alarm input | No |
| Alarm reset input | No |
| RS485 | No |
| LAN | 10/100Mbps RJ-45 |
| Dual stream | Yes |
| DVR controlling | Web browser, mouse |
| Network access | IE, NVMS2.0 |
| Access via mobile phone | Android, iPhone |
| Power supply | 12V DC |
| Consumption | 5W without HDD |
| Fan | No |
| Dimensions | 255 x 222 x 42 mm |
| Working temperature | -10°C – 50°C |
| Air humidity | 10% – 90% |
