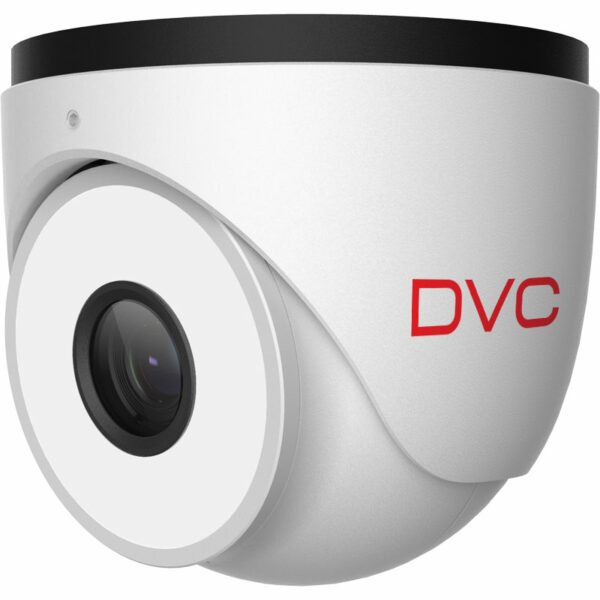

DFN-TM2221L
Turret IP video kamera, Face detection, rezolucija 2Mpx/25fps, objektiv 7 – 22 mm moto-zoom, SMART H.265, True WDR 120dB, Soft light LED osvjetljenje dometa 10m, 12VDC/PoE, SD kartica, Audio in + mic, Onvif, IP67, zaštita.
| Manufacturer | DVC |
|---|---|
| Technology | IP video |
| Optical sensor | 1/2.8'' Sony Starvis IMX307 |
| DSP | Hisilicon HI3516DV300 |
| Resolution | 1080p, 2Mpx, 720p@25fps (2 streams) |
| Bit rate | 64Kbps – 6Mbps |
| Video compression | SMART H.265 |
| The housing | Turret |
| Lens | 7 -22 mm moto-zoom |
| Minimum illumination (Lux) | 0 Lux IR ON, 0.002 Lux |
| The horizontal angle | 43.4° – 17.6° |
| Onvif | Yes |
| Video analytics | Face detection |
| SD card | Micro SD/SDHC/SDXC, Smart Failover (do 128 GB) |
| Audio | 1 x In / built-in microphone |
| LED illumination | 20-30m |
| Number of IR LED | 0 |
| Day / night function | ICR + Soft Light LED |
| Dynamic range | True WDR (120 dB) |
| HLC | Auto |
| BLC | Auto |
| Noise reduction | 3D-DNR |
| 3-Axis | Yes |
| Antivandal housing | Yes |
| IP protection | IP67 |
| IK protection | IK10 |
| Power supply | 12VDC / PoE (24VAC option) |
| Consumption | <10W |
| Working temperature | -30°C + 60°C |
| Dimensions | Ф 111.5 x 99.6 |
