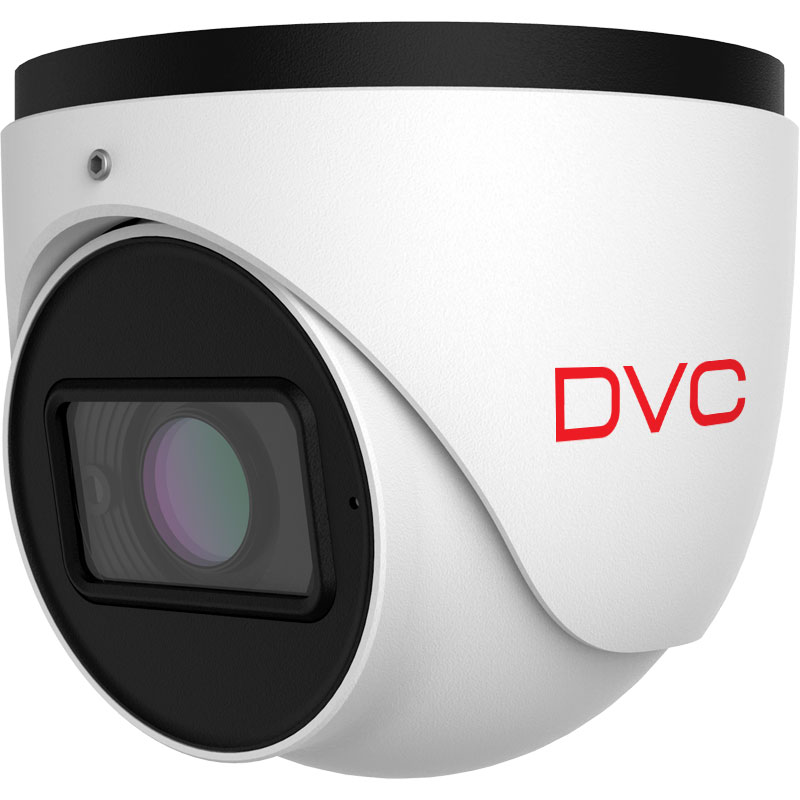

DCN-TM5125N

Turret IP video kamera, rezolucija 5Mpx/20fps, objektiv 3.3 – 12 mm motorizirani zoom, H.265, 2 x Array Black glass IR LED dometa 30-50 m, 12VDC/PoE, Onvif, videoanalitika, IP67 zaštita.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.7'' SmartSens SC530AI

DSP

NT98513

Resolution

1080p, 5Mpx, 720p

Bit rate

128Kbps – 10Mbps

Video compression

H.265

The housing

Dome

Lens

3.3-12 mm motorized zoom

Minimum illumination (Lux)

0.0085Lux@F1.2, 0Lux IR ON

The horizontal angle

92 ° to 32.9 °

Onvif

Yes

Video analytics

Crossing over the line, incursion into the area, the exceptions

SD card

Yes

Audio

Built-in microphone

IR

30-50m

Number of IR LED

2 x Array Black glass IR LED

Day / night function

ICR

Dynamic range

D-WDR

HLC

Yes

BLC

Yes

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE

Consumption

8 W

Working temperature

-30°C do 60°C

Dimensions

F111.5 x 99.6 mm
