DCN-TM4125AI-P

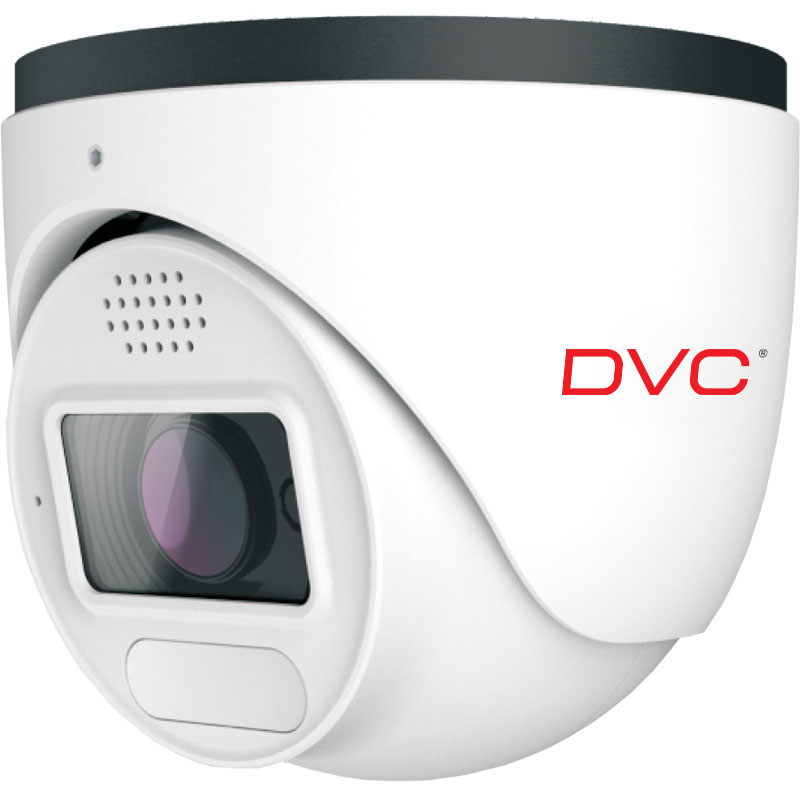

Turret IP video kamera, rezolucija 4Mpx/25fps, objektiv 2.8 – 12mm moto-zoom, SMART H.265, IR LED dometa 30-50 m, True WDR 120dB, 12VDC/PoE, Onvif, IP66, AI videoanalitika, prepoznavanje lica.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/3'' SmartSens SC4238

DSP

Hisilicon HI3516CV500

Resolution

1080 p, 2K, 3Mpx, 4Mpx, 720 p

Bit rate

64Kbps-8Mbps

Video compression

SMART H.265

The housing

Turret

Lens

2.8 – 12 mm moto-zoom

Minimum illumination (Lux)

0.005Lux@F1.6, Low Light

The horizontal angle

94.2°-29.8°

Onvif

Yes

Video analytics

AI: Crossing the line, entering the space, leaving the space., trespassing

SD card

Micro SD/SDHC/SDXC, Smart Failover (do 128 GB)

Audio

1 x In / 1 x out, Built-in speaker and microphone

IR

30-50m

Number of IR LED

2 x Array Black glass IR LED

Day / night function

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Dynamic range

True WDR  (120 dB)

HLC

Auto

BLC

Auto

Noise reduction

2D/3D DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE (24VAC option)

Consumption

0.8 A, 12VDC, 12W, max. 10 W/ 0.35A

Working temperature

-30°C + 60°C

Dimensions

Ф 111.5 x 99.6
