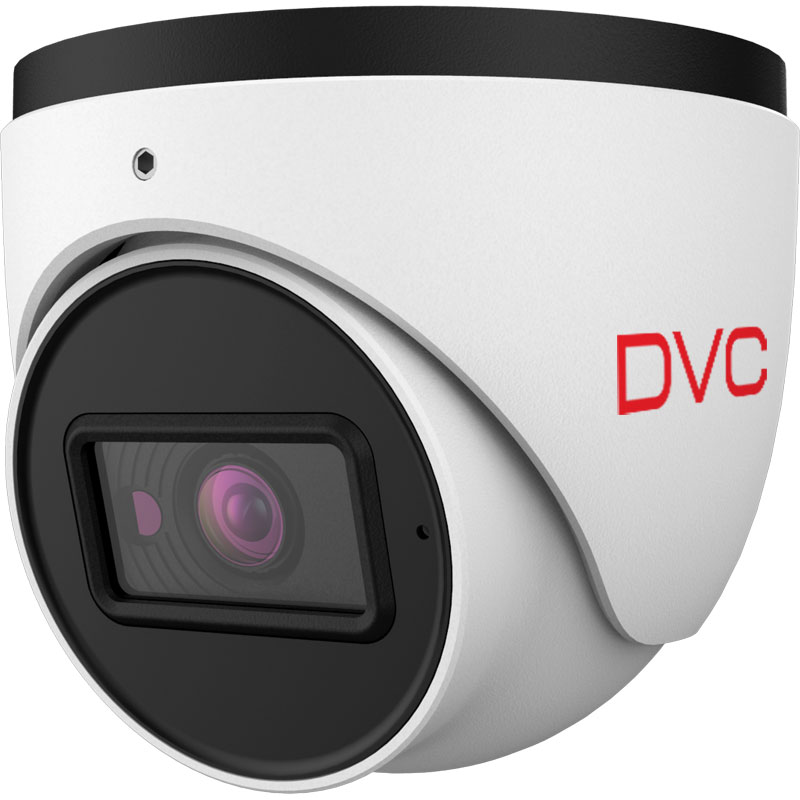

DCN-TF5283N
Turret IP video kamera, rezolucija 5Mpx/20fps, objektiv 2.8 mm, H.265, 1 x Array IR LED dometa 20-30m, D-WDR, 12VDC/PoE, Onvif, IP67 zaštita, videoanalitika.
Manufacturer | DVC |
---|---|
Technology | IP video |
Optical sensor | 1/2.7'' SmartSens SC530AI |
DSP | NT98513 |
Resolution | 1080p, 5Mpx, 720p |
Bit rate | 128Kbps – 10Mbps |
Video compression | H.265 |
The housing | Dome |
Lens | 2.8mm |
Minimum illumination (Lux) | 0.0085Lux@F1.2, 0Lux IR ON |
The horizontal angle | 93.4 ° |
Onvif | Yes |
Video analytics | Crossing over the line, incursion into the area, the exceptions |
SD card | Yes |
Audio | Built-in microphone |
IR | 20-30m |
Number of IR LED | 1 x Array Black glass IR LED |
Day / night function | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
Dynamic range | DWDR |
HLC | Auto |
BLC | Auto |
Noise reduction | 3D-DNR |
3-Axis | Yes |
Antivandal housing | Yes |
IP protection | IP67 |
IK protection | IK10 |
Power supply | 12VDC / PoE (24VAC option) |
Consumption | 5W |
Working temperature | -30°C + 60°C |
Dimensions | Φ94.6 x 82.8 mm |
