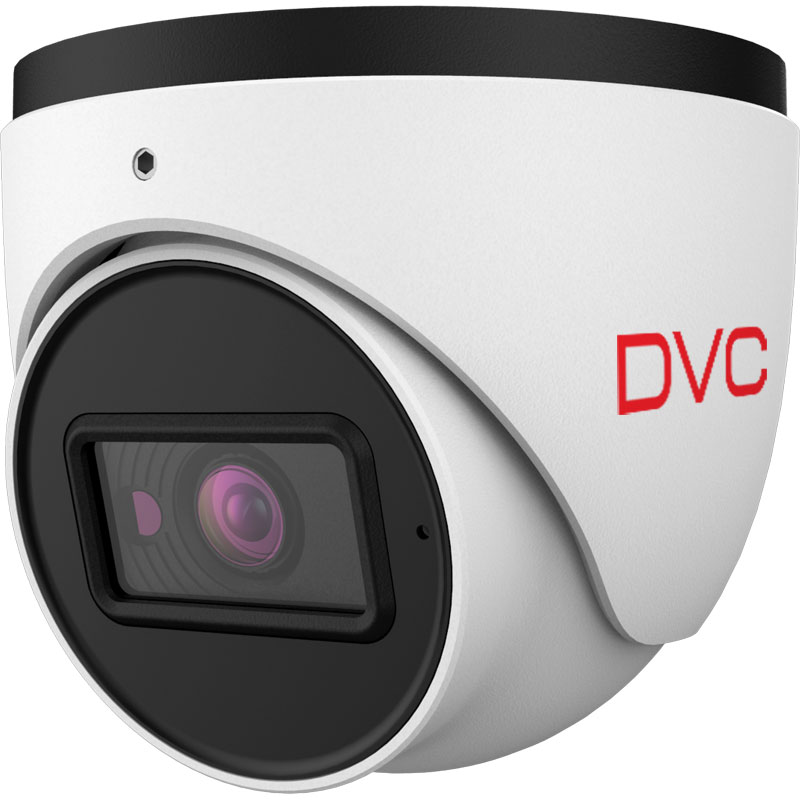

DCN-TF2283SN

Turret IP video kamera, rezolucija 2Mpx/25fps, objektiv 2.8 mm, H.264 i H.265, 1 x Array Black glass IR LED dometa 20-30 m, 12VDC/PoE, Onvif, IP67 zaštita, videoanalitika.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.8'' Omnivision OS02H10

Resolution

1080p, 2Mpx, 720p@25fps (2 streams)

Bit rate

128 Kbps-6Mbps

Video compression

H.264, H.265

The housing

Turret

Lens

2.8mm

Minimum illumination (Lux)

0.005Lux@F1.6, Low Light

The horizontal angle

106°

Onvif

Yes

Video analytics

Crossing over the line, incursion into the area, the exceptions

SD card

Micro SD/SDHC/SDXC, Smart Failover (do 128 GB)

Audio

Built-in microphone

IR

20-30m

Number of IR LED

1 x Array Black glass IR LED

Day / night function

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Dynamic range

True WDR  (120 dB)

HLC

Auto

BLC

Auto

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE (24VAC option)

Consumption

6W

Working temperature

-30°C + 60°C

Dimensions

Φ94.6 x 82.8 mm
