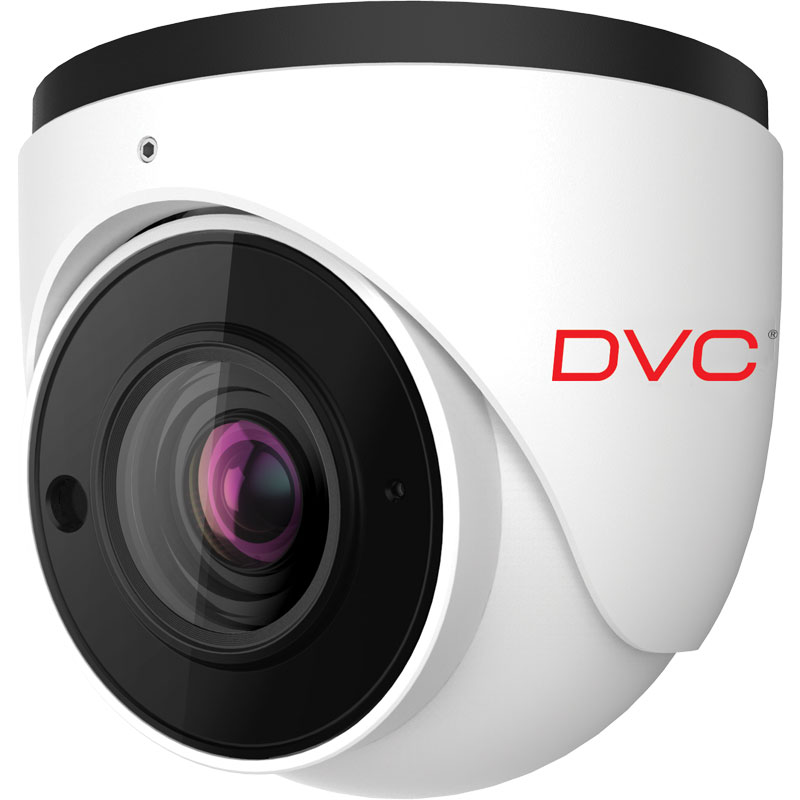

DCN-TF2283S2

Turret IP video kamera, rezolucija 2Mpx/25fps, objektiv 2.8 mm, H.264 i H.265, 1 x Array Black glass IR LED dometa 20-30 m, 12VDC/PoE, Onvif, IP67 zaštita, videoanalitika.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.8'' Sony Starvis IMX327 Starlight

DSP

Hisilicon HI3518Ev200

Resolution

1080p, 720p@25fps (2 streams)

Bit rate

128Kbps – 6Mbps

Video compression

H.264 i H.265

The housing

Turret

Lens

2,8 mm

Minimum illumination (Lux)

0.0028Lux@F1.2, 0Lux IR ON

The horizontal angle

103.5°

Onvif

Yes

Video analytics

Crossing the line, breaking into the space, exceptions.

SD card

Up to 128 Gb

Audio

Built-in microphone

IR

20-30m

Number of IR LED

1 x Array Black glass IR LED

Day / night function

ICR

Dynamic range

D-WDR

HLC

Yes

BLC

Yes

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE

Consumption

6 W

Working temperature

-30°C up to 60°C

Dimensions

Φ94.6 x 82.8 mm
