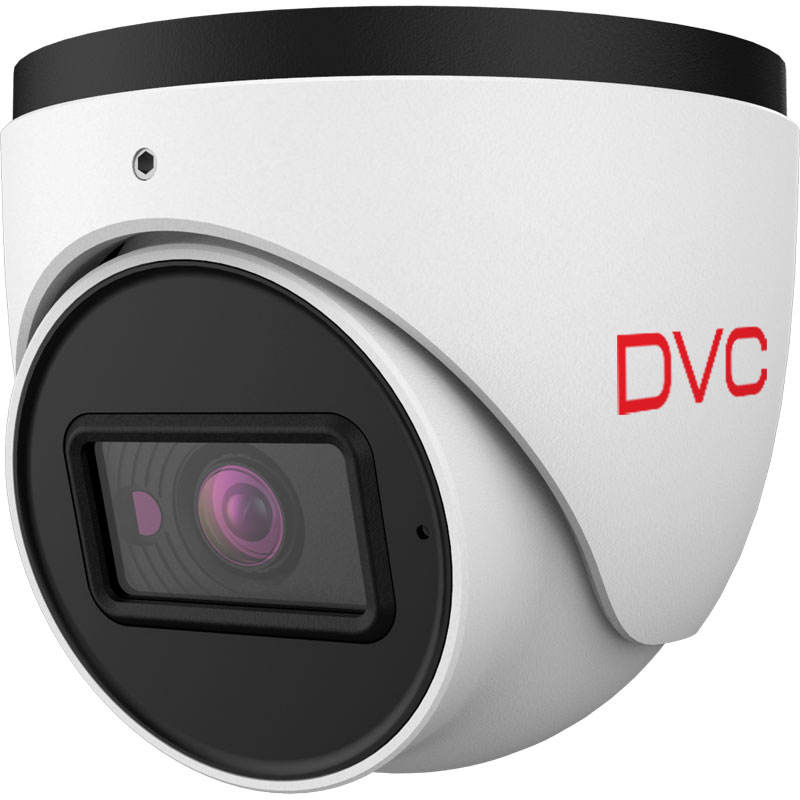

DCN-TF2283N

Turret IP video kamera, rezolucija 2Mpx/25fps, objektiv 2.8 mm, H.265, 1 x Array Black glass lR LED dometa 20-30 m, 12VDC/PoE, Onvif, SD-kartica, IP67 zaštita, videoanalitika.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.8'' Smartsens SC233A

Max resolution

2MP

Bit rate

64Kbps – 6Mbps

Video compression

H.265

The housing

Turret

Lens

2.8mm

Minimum illumination (Lux)

0.008Lux@F1.6, 0Lux IR ON

The horizontal angle

107°

Onvif

Yes

Video analytics

Crossing over the line, incursion into the area, the exceptions

SD card

Yes

Audio

1 x In / built-in microphone

IR

20-30m

Number of IR LED

1 x Array Black glass IR LED

Day / night function

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Dynamic range

DWDR

HLC

Auto

BLC

Auto

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE (24VAC option)

Consumption

5, 5W

Working temperature

-30°C + 60°C

Dimensions

Φ94.6 x 82.8 mm
