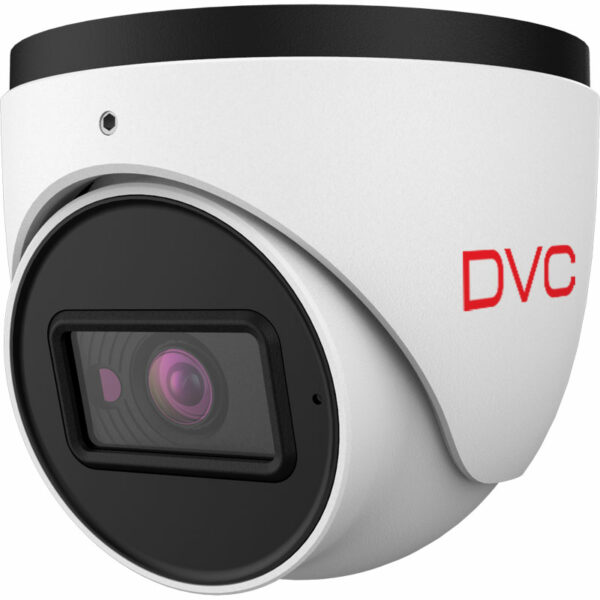

DCN-TF2283AIN

Turret IP video kamera, rezolucija 2Mpx/25fps, objektiv 2.8 mm, SMART H.265, 1 x Array IR LED dometa 20-30 m, True WDR 120dB, 12VDC/PoE, Onvif, IP67 zaštita, AI videoanalitika, face detection.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.8'' Sony Starvis IMX307

DSP

Hisilicon HI3516CV500

Resolution

1080p, 2Mpx, 720p@25fps (2 streams)

Bit rate

64Kbps – 6Mbps

Video compression

SMART H.265

The housing

Turret

Lens

2.8mm

Minimum illumination (Lux)

0 Lux IR ON, 0.002 Lux

The horizontal angle

108°

Onvif

Yes

Video analytics

AI: Crossing the line, counting persons, exceptions., Face recognition, intrusion into space, tracking the object

SD card

Micro SD/SDHC/SDXC, Smart Failover (do 128 GB)

Audio

1 x In / built-in microphone

IR

20-30m

Number of IR LED

1 x Array Black glass IR LED

Day / night function

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Dynamic range

True WDR  (120 dB)

HLC

Auto

BLC

Auto

Noise reduction

2D/3D DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE (24VAC option)

Consumption

5W, 7

Working temperature

-30°C + 60°C

Dimensions

Φ94.6 x 82.8 mm
