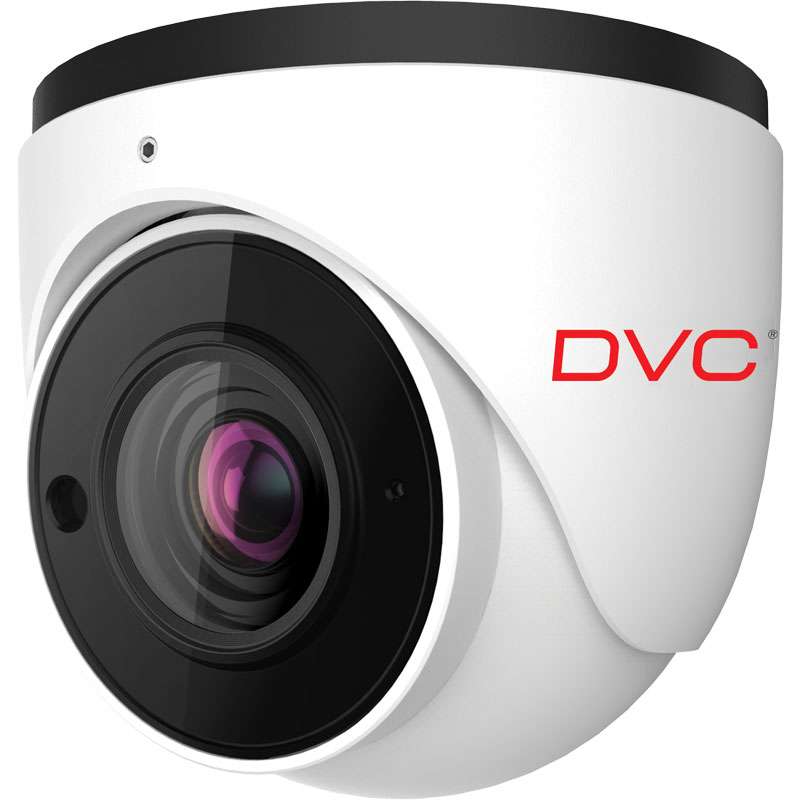

DCN-TF2283

Turret IP video kamera, rezolucija 2Mpx/25fps, objektiv 2.8 mm, H.265, 1 x Array Black glass lR LED dometa 20-30 m, 12VDC/PoE, Onvif, SD-kartica, IP67 zaštita, videoanalitika.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.7'' SmartSens SC2238

DSP

HiSilicon Hi3516E

Max resolution

1080p, 720p@25fps

Bit rate

64Kbps – 6Mbps

Video compression

H.265

The housing

Turret

Lens

2,8 mm

Minimum illumination (Lux)

0.0035Lux@F1.2, 0Lux IR ON

The horizontal angle

107°

Onvif

Yes

Video analytics

Crossing the line, breaking into the space, exceptions.

SD card

Yes

Audio

1 x In/ built-in microphone

IR

20-30m

Number of IR LED

1 x Array Black glass IR LED

Day / night function

ICR

Dynamic range

D-WDR

HLC

Yes

BLC

Yes

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE

Consumption

5,5W

Working temperature

-30°C up to 60°C

Dimensions

Φ94.6 x 82.8 mm
