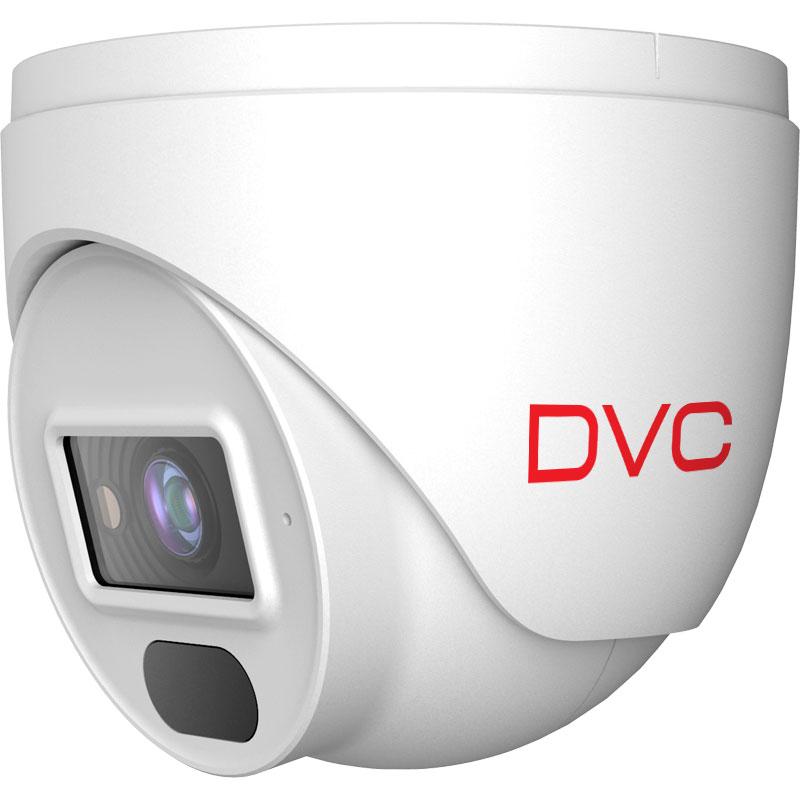

DCN-TF2282
Turret IP video kamera, rezolucija 2Mpx/25fps, objektiv 2.8 mm, H.265, IR LED dometa 10-20 m, 12VDC/PoE, IP67 zaštita, videoanalitika.
Manufacturer | DVC |
---|---|
Technology | IP video |
Optical sensor | 1/3.2'' SmartSens SC2231 |
DSP | Hisilicon HI3516Ev200 |
Resolution | 1080p, 2Mpx, 720p@25fps (2 streams) |
Bit rate | 64Kbps – 6Mbps |
Video compression | H.265 |
The housing | Turret |
Lens | 2.8mm |
Minimum illumination (Lux) | 0.012Lux@F1.2, 0Lux IR ON |
The horizontal angle | 93.7° |
Onvif | Yes |
Video analytics | Crossing over the line, incursion into the area, the exceptions |
SD card | No |
Audio | Built-in microphone |
IR | 10-20m |
Number of IR LED | 1 x Array Black glass IR LED |
Day / night function | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
Dynamic range | DWDR |
HLC | Auto |
BLC | Auto |
Noise reduction | 3D-DNR |
3-Axis | Yes |
Antivandal housing | No |
IP protection | IP67 |
IK protection | No |
Power supply | 12VDC / PoE (24VAC option) |
Consumption | 5W |
Working temperature | – 20°C do 55°C |
Dimensions | Ф 94.8 x 82.8 mm |
