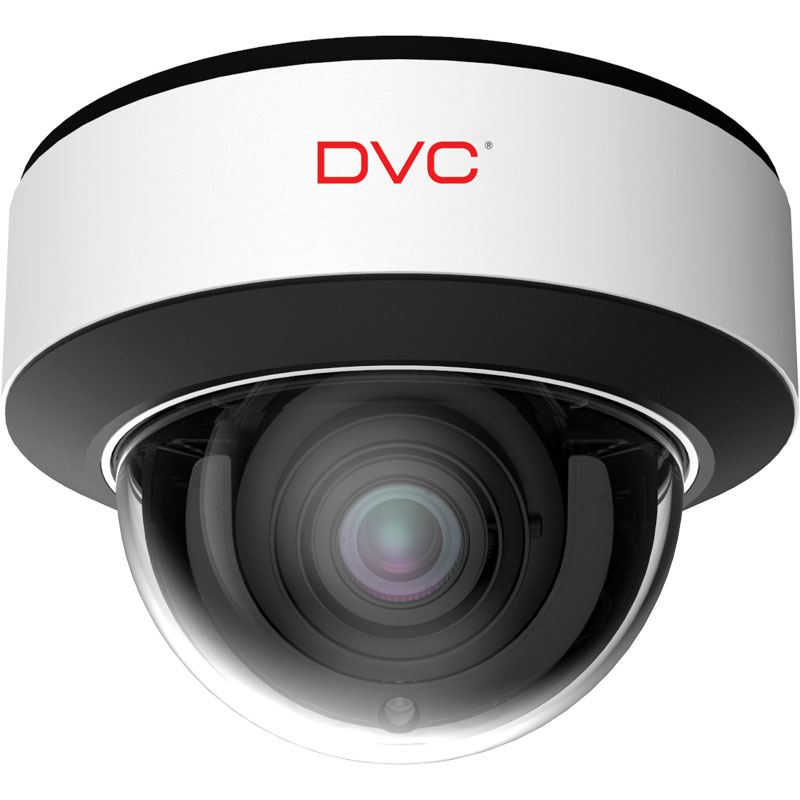

DCN-DM5125AI
Dome IP video kamera, rezolucija 5Mpx/25fps, objektiv 2.8-12mm moto-zoom, SMART H.265, 3 x Array IR LED dometa 30-50 m, True WDR 120dB, 12VDC/PoE, Onvif, IP67 i IK10 zaštita, AI+ videoanalitika, face detection.
| Manufacturer | DVC |
|---|---|
| Technology | IP video |
| Optical sensor | 1/2.7'' Omnivision OS05A20 |
| DSP | Hisilicon HI3516DV300 |
| Resolution | 1080p, 2K, 5Mpx, 720p@25fps (3 streams) |
| Bit rate | 128Kbps – 10Mbps |
| Video compression | SMART H.265 |
| The housing | Antivandal dome |
| Lens | 2.8 – 12 mm moto-zoom |
| Minimum illumination (Lux) | 0.0045Lux@F1.2, 0Lux IR ON |
| The horizontal angle | 92.7°-29.8° |
| Onvif | Yes |
| Video analytics | AI: Crossing the line, counting people, exceptions., face detection / capture, intrusion into space, tracking the object |
| SD card | Micro SD/SDHC/SDXC, Smart Failover (do 128 GB) |
| Audio | line-in + integrated microphone / line-out |
| IR | 30-50m |
| Number of IR LED | 3 x Array Black glass IR LED |
| Day / night function | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
| Dynamic range | True WDR (120 dB) |
| HLC | Auto |
| BLC | Auto |
| Noise reduction | 3D-DNR |
| 3-Axis | Yes |
| Antivandal housing | Yes |
| IP protection | IP67 |
| IK protection | IK10 |
| Power supply | 12VDC / PoE (24VAC option) |
| Consumption | 9.5W |
| Working temperature | -30°C + 60°C |
| Dimensions | Φ141 x 100.2 mm |
