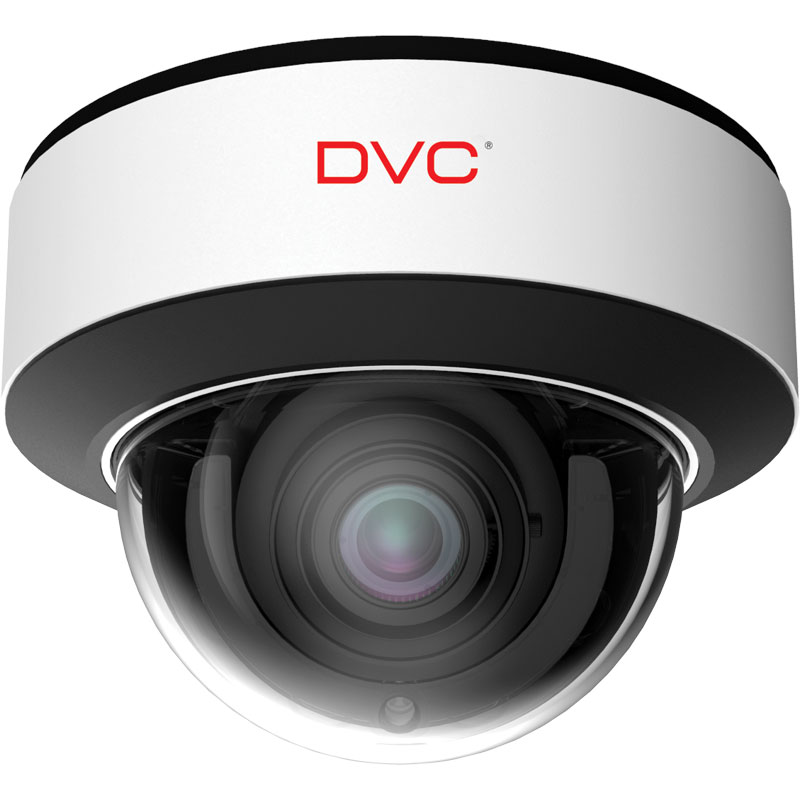

DCN-DF8283AI

Dome IP video kamera, rezolucija 8Mpx/20fps, objektiv 2.8 mm, SMART H.265, 16 x Array Black glass IR LED dometa 20-30 m, 12VDC/PoE, SD kartica, audio in+mic, Onvif, IP67 zaštita,IK10, AI videoanalitika, face detection.

Manufacturer

DVC

Technology

IP video

Optical sensor

1/2.8'' Sony Starvis IMX415

DSP

Hisilicon HI3516DV300

Resolution

1080p, 3Mpx, 720p@25fps (3 streams), 8Mpx@20fps / 5Mpx

Bit rate

64Kbps – 12Mbps

Video compression

SMART H.265

The housing

Dome

Lens

2.8mm

Minimum illumination (Lux)

0.008Lux@F1.2, 0Lux IR ON

The horizontal angle

109.7°

Onvif

Yes

Video analytics

AI: Crossing the line, counting people, exceptions., face detection / capture, intrusion into space, tracking the object

SD card

Micro SD/SDHC/SDXC, Smart Failover (do 128 GB)

Audio

1 x In / built-in microphone

IR

20-30m

Number of IR LED

16 x Array Black glass IR LED

Day / night function

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Dynamic range

True WDR  (120 dB)

HLC

Auto

BLC

Auto

Noise reduction

2D/3D DNR

3-Axis

Yes

Antivandal housing

Yes

IP protection

IP67

IK protection

IK10

Power supply

12VDC / PoE (24VAC option)

Consumption

7W

Working temperature

-30°C + 60°C

Dimensions

Φ119 x 87.8 mm
