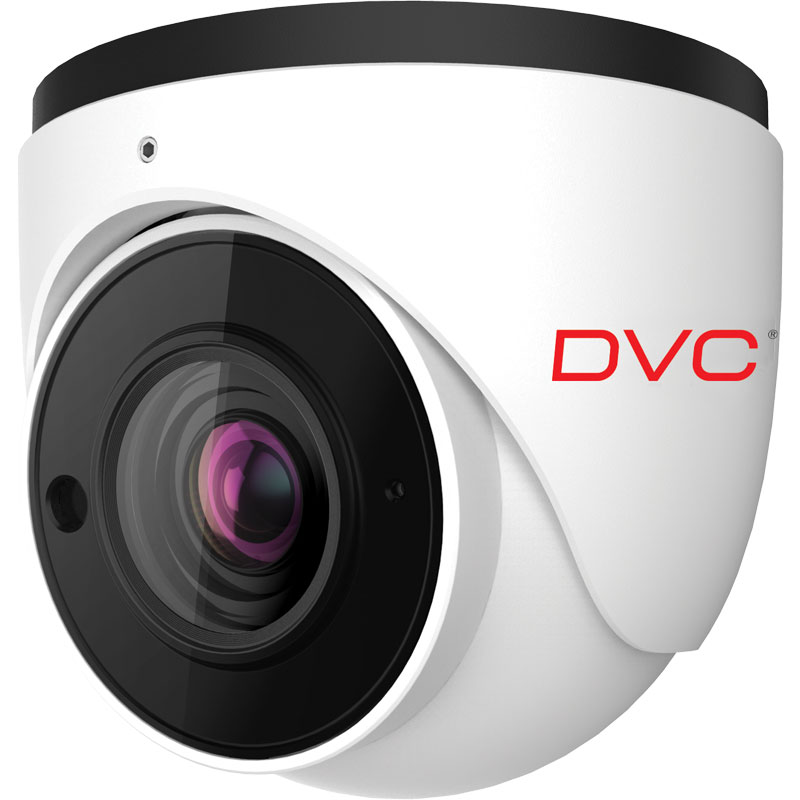

DCA-TF2283
Turret AHD 2.0 video kamera, rezolucije 1080p, 1/2.9” SmartSens SC2232H senzor, objektiv 2.8 mm, osjetljivost 0.001Lux@F1.2, 10 IR LED dometa 20-30m, napajanje 12VDC, IP67.
| Manufacturer | DVC |
|---|---|
| Technology | AHD, HD-CVI, HD-TVI, analogue |
| Optical sensor | 1/2.9'' SmartSens SC2232H |
| DSP | Fulhan FH8536H |
| Max resolution | 1080p |
| The housing | Turret |
| Lens | 2,8 mm |
| Minimum illumination (Lux) | 0.001Lux@F1.2, 0Lux IR ON |
| The horizontal angle | 92.7° |
| Video output | VBS 1.0Vp-p/75 Ohm |
| S/N ratio | ≥52dB ( AGC OFF ) |
| IR | 20-30m |
| Number of IR LED | 10 x SMD Array LED |
| Day / night function | ICR |
| OSD | Control Over Coax (COC), without joystick |
| Dynamic range | D-WDR |
| HLC | No |
| BLC | Yes |
| Image stabilization (AGC) | Yes |
| Noise reduction | 2D/3D DNR |
| 3-Axis | Yes |
| Antivandal housing | No |
| IP protection | IP67 |
| IK protection | No |
| Power supply | 12V DC |
| Consumption | 3W |
| Working temperature | -30°C +50°C |
| Dimensions | Ф 94.8 x 82.8 mm |
