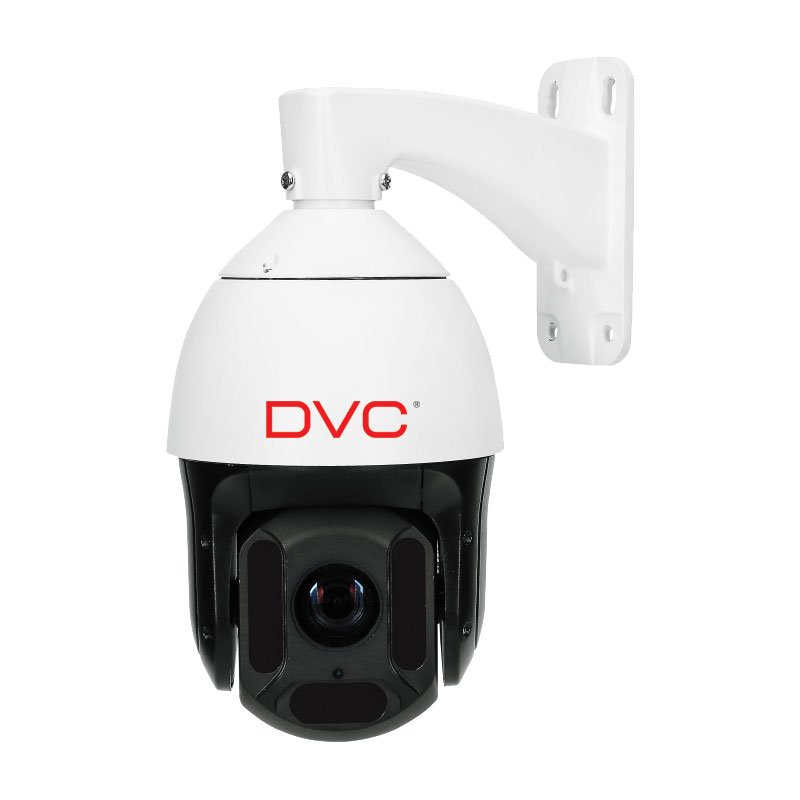

DCA-PM220X0

PTZ AHD video kamera, rezolucija 1080p, 20x optički zoom, objektiv 4.7-94 mm, 128 preseta, Pan brzina 220 ° / sec., 9 array IR LED dometa do 100m, samo AHD mod rada, napajanje 24V DC u kompletu, IP66 zaštita, zidni nosač u kompletu.

Manufacturer

DVC

Technology

AHD

Optical sensor

1/3 "Sony Exmor IMX323 CMOS SENSOR

DSP

NEXTCHIP NVP2441H

Max resolution

1080p

The housing

PTZ

Aperture

4.7 – 94 mm 20 x zoom

Minimum illumination (Lux)

0.5Lux@F1.6 – F4.5, 0Lux IR ON

Video output

VBS 1.0Vp-p/75 Ohm

S/N ratio

>52dB

IR

up to 100 m

Number of IR LED

9 x array

Day / night function

EDN

Dynamic range

D-WDR

HLC

Yes

BLC

Yes

Image stabilization (AGC)

Yes

Noise reduction

2D DNR

Panoramic angle

360 ° (unlimited)

Vertical angle

0° – 90°

Panoramic speed

0.1 ° – 220 ° / sec

The speed of manual guidance

0.1 ° – 220 ° / sec

Number of memories

128

Number of patrolling

4

Controlling

COC, RS485 (Pelco P / D)

Antivandal housing

No

IP protection

IP66

IK protection

No

Power supply

24V DC/2A power supply included

Consumption

50W

Working temperature

-10°C do 60°C

Dimensions

Ø 185 x 374 mm

Working humidity

0% – 95%
