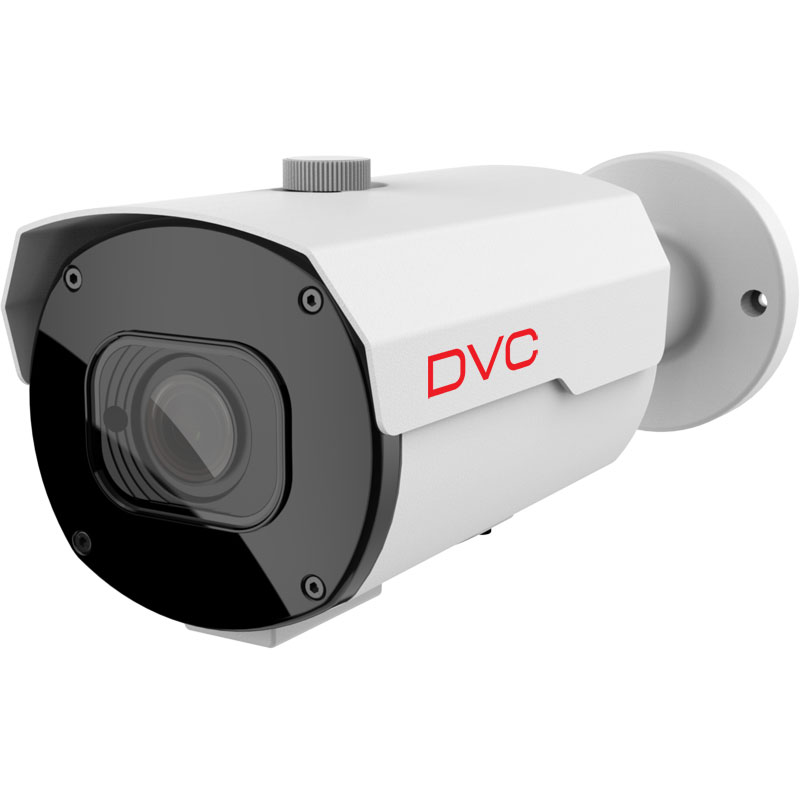

DCA-BM5145W

Bullet AHD 3.0 video kamera, rezolucije 5Mpx, 1/2.8” Sony IMX335, objektiv 2.7 – 13.5 mm moto-zoom, osjetljivost 0.05Lux@F1.2, True WDR 120dB, 30 SMD IR LED dometa 35-45m, napajanje 12VDC, IP67.

Manufacturer

DVC

Technology

AHD, HD-CVI, HD-TVI, analogue

Optical sensor

1/2.8'' Sony IMX335

DSP

Fulhan FH8538

Max resolution

1080p

The housing

Compact

Lens

2.7 – 13.5mm moto-zoom

Minimum illumination (Lux)

0.05Lux@F1.2, 0Lux IR ON

The horizontal angle

99° – 30°

Video output

VBS 1.0Vp-p/75 Ohm

IR

35-45m

Number of IR LED

30 x SMD LED

Day / night function

ICR

OSD

Control Over Coax (COC)

Dynamic range

True WDR (120 dB)

HLC

Yes

BLC

Yes

Image stabilization (AGC)

Yes

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

No

IP protection

IP67

IK protection

No

Power supply

12VDC

Consumption

5W

Working temperature

-30°C + 60°C

Dimensions

240 x 84 x 77mm
