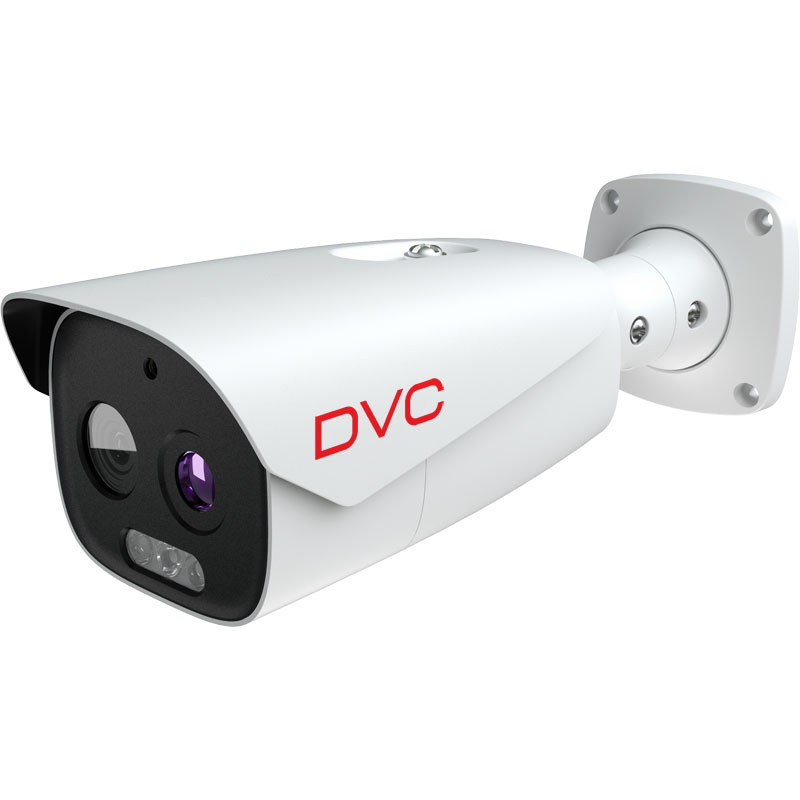

DTC-BF5073

Termalna Bullet IP video kamera, termalna rezolucija 256×192 termalni objektiv 7mm@F1.0, udaljenost mjerenja 1.1m, preciznost ±8°C, optička rezolucija 5Mpx/30fps, objektiv 7mm, H.265, IR 20-30m, True WDR 120dB, 12VDC/PoE, SD kartica, audio in+zvučnik, white light, Onvif, AI videoanalitika, IP66.

Manufacturer

DVC

Technology

IP video, thermal camera

Thermal sensor resolution

12μm 256 192 Vanadium oxide uncooled focal × plane detector

NETD

≤50mK(@25°C, F#=1.0)

Thermal lens

7mm@F1.0

Minimum focus distance

1.1m

Color palette

Black, pseudo colors, white

Temperature alarm

High temperature alarm, low temperature alarm

Simultaneous temperature measurement

10 osoba

Optical sensor

1/2.7" CMOS

Optical sensor resolution

1080p, 4Mpx, 5Mpx, 720p@25fps (3 streams)

Video compression

H.264 i H.265

The housing

Bullet

Lens

8mm@F2.0

Minimum illumination (Lux)

0.03Lux

Onvif

Yes

Video analytics

AI: Crossing the line, counting people, exceptions., face detection / capture, intrusion into space, tracking the object

SD card

To 256Gb

Audio

1 x In/ built-in speaker

Alarm input / output

1/1

IR

20-30m

Day / night function

ICR

Dynamic range

True WDR (120 dB)

HLC

Yes

BLC

Yes

Noise reduction

3D-DNR

3-Axis

Da

Antivandal housing

No

IP protection

IP66

IK protection

No

Power supply

12V DC, PoE

Consumption

9W

Working temperature

-30°C do 60°C

Working humidity

0% ~ 95% (uncondensed)

Dimensions

217.8 × 80.5 × 80.3
