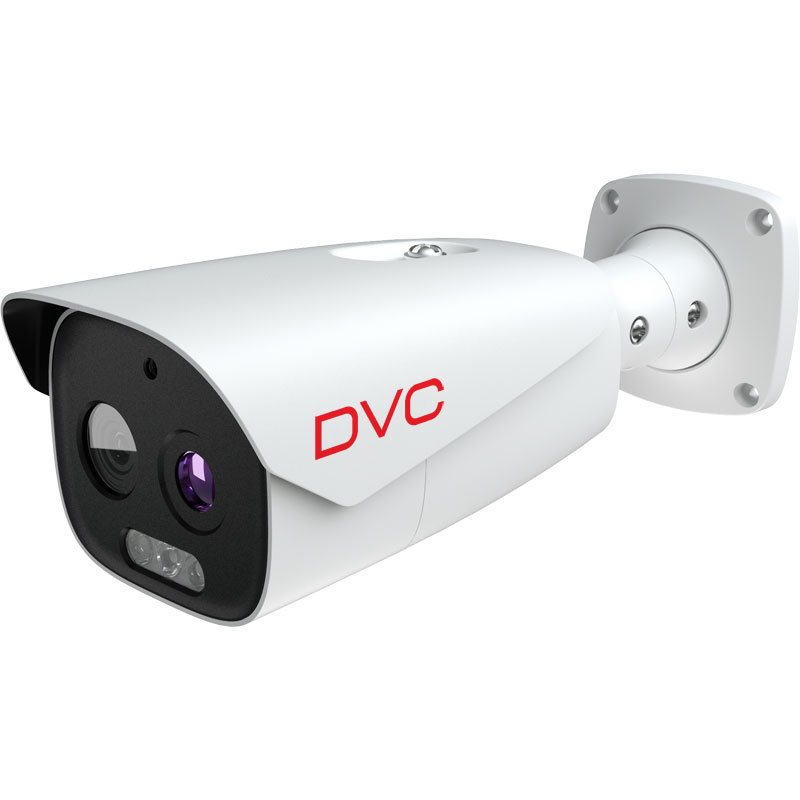

DTC-BF0013

Termalna Bullet IP video kamera, termalna rezolucija 256×192, termalni objektiv 12.3mm@F1.0, udaljenost mjerenja 2-6m, preciznost ±0.3°C, optička rezolucija 5Mpx/25fps, objektiv 8mm, H.265, IR 20-30m, True WDR 120dB, 12VDC/PoE, SD kartica, audio in+zvučnik, Onvif, AI videoanalitika.

Manufacturer

DVC

Technology

IP video, thermal camera

Thermal sensor resolution

17um 256×192 Vanadium oxide uncooled focal plane detector

NETD

<35mK(@25°C, F#=1.0)

Thermal lens

12.3mm@F1.0

Minimum focus distance

1.34m

Temperature measurement distance

2-6m

Color palette

Black, white, pseudo colors

Temperature alarm

High temperature alarm, low temperature alarm

Simultaneous temperature measurement

20 person

Optical sensor

1/2.7" BSI + NIR progressive CMOS image

Optical sensor resolution

5Mpx, 4Mpx, 1080p, 720p@25fps (3 streams)

Bit rate

128Kbps – 10Mbps

Video compression

H.264 i H.265

The housing

Bullet

Lens

8mm@F2.0

Minimum illumination (Lux)

0.0045Lux@F1.2, 0Lux IR ON

Onvif

Yes

Video analytics

AI: Crossing the line, tracking the object, intrusion into space, counting persons, face detection / capture, exceptions.

SD card

Up to 256 Gb

Audio

1 x In/ built-in speaker

Alarm inputs / outputs

1/10

IR

20-30m

Day / night function

ICR

Dynamic range

True WDR (120 dB)

HLC

Yes

BLC

Yes

Noise reduction

3D-DNR

3-Axis

Yes

Antivandal housing

No

IP protection

IP66

IK protection

No

Power supply

12V DC, PoE

Consumption

9W

Working temperature

+16 °C ~ +35 °C (without wind)

Working humidity

0% ~ 95% (uncondensed)

Dimensions

279.5 x 100.3 x 88.9 mm
