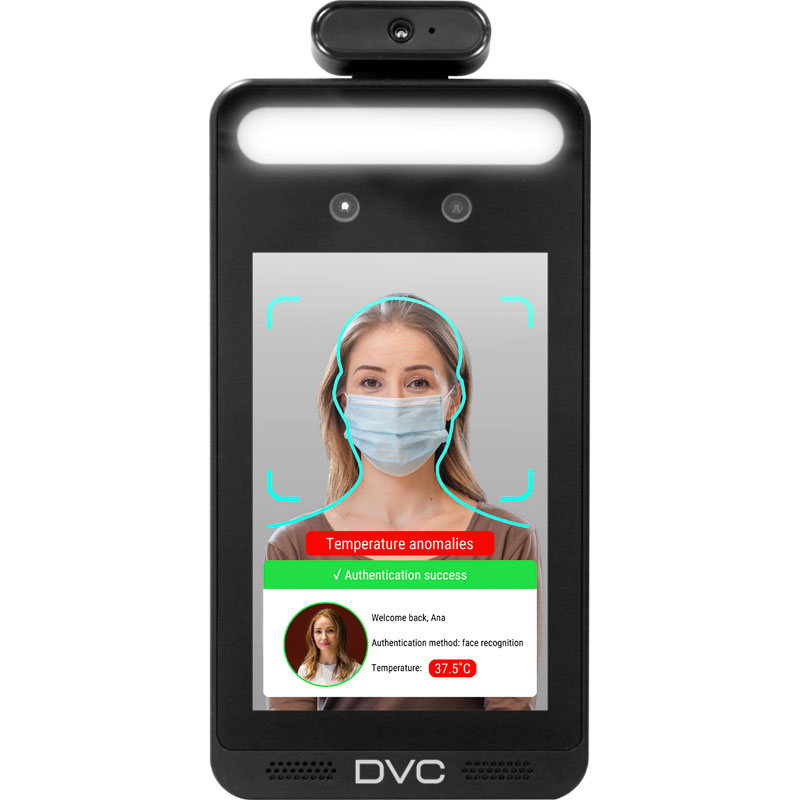

DTC-24F
LCD terminal for temperature measurement and face recognition, built-in 2Mpx Dual-Lens camera.
| Manufacturer | DVC |
|---|---|
| Operating System (OS) | Embedded Linux |
| Screen | 8 "LCD; 1280 x 800 resolution; 500: 1 contrast |
| Temperature range of measurement | 32°C – 43°C |
| Precision | +/-0.3°C |
| Measuring distance | 0.7 – 1m |
| Lens | 3.97mm |
| Dynamic range | True WDR 120 dB |
| Face detection range | 1.2 – 2.2m (recommended installation height 1.45m) |
| Face recognition distance | 0.3 – 2m |
| Recognition time | </ = 0.5 seconds per person |
| Memory capacity | 20 000 faces |
| Recognition accuracy | 99.7% |
| Additional lighting | LED Soft white light |
| Audio | Built-in speaker and microphone |
| Alarm inputs / outputs | 2/2 |
| Wiegand interace | entrance/exit |
| RS485 | Yes |
| Lock output | Relay |
| SD card | up to 128Gb |
| Anti-tamper | Yes |
| Power supply | 12V DC |
| Consumption | <12W |
| Operating temperature | 0°C – 40°C |
| Operating humidity | 0% – 95% |
| Dimensions | 301.8 x 138.6 x 34.2 mm |
| Accessories included | Wall bracket |
