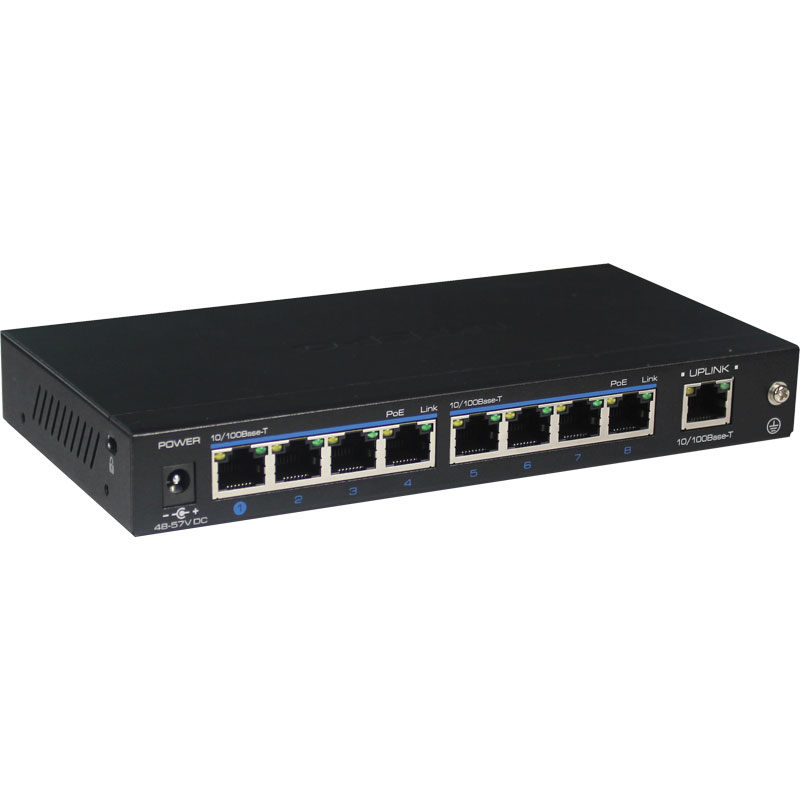

DAS-2081P
8-port PoE switch + 1 x uplink port. 8 x 10/100 Base-T(PoE power supply) every port up to 30W, in total up to 120W, 1 x 10/100 Base-T uplink, PoE protocol: IEEE802.3af, IEEE802.3at, power suplly 53VDC.
| Technology | IP video |
|---|---|
| Manufacturer | DVC |
| Total number of ports | 8+1 |
| Connectivity | 8 x 10/100BASE-T + 1 x 10/100BASE-T |
| PoE ports | 8 x PoE |
| Max power of each PoE port | 15W |
| Total PoE power | 120W |
| Transmission distance | 1-9 port: 100m |
| Supported standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| Patch capacity | 1.8Gbps |
| SFP slots | No |
| Power supply | 54V DC |
| Dimensions | 200 x 101.8 x 27 mm |
| Operating temperature | -10°C – 55°C |
